SPECS :
|
Item No. |
Character size
(H) metric imperial |
Shank size
(mm) square |
Shank size
(mm) length |
|
ES00630 |
1.5mm |
6.35 |
62 |
|
ES00630-01 |
2.0mm |
6.35 |
61 |
|
ES00630-02 |
2.5mm |
6.35 |
61 |
|
ES00630-03 |
3.0mm |
6.35 |
61 |
|
ES00630-04 |
4.0mm |
6.35 |
60 |
|
ES00630-05 |
4.0mm |
7.93 |
62 |
|
ES00630-06 |
5.0mm |
7.93 |
62 |
|
ES00630-07 |
6.0mm |
7.93 |
61 |
|
ES00630-08 |
6.0mm |
9.52 |
68 |
|
ES00630-09 |
7.0mm |
11.11 |
69 |
|
ES00630-10 |
8.0mm |
11.11 |
68 |
|
ES00630-11 |
8.0mm |
12.7 |
71 |
|
ES00630-12 |
10.0mm |
12.7 |
71 |
FEATURES :

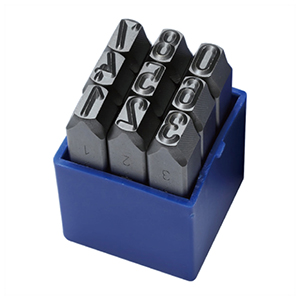

► Each set packed in a blue plastic case
► Stamp is the sandblasting treatment
► Hardness: Front end font HRC 58~62 degrees
Tail end tempering HRC 38~46 degrees
► For hand-held, hammer-struck and/or machine
applications
► Each stamp is marked with the mm/ inch sizes on the
stamp’s body side
► Each stamp is cut-head sided
► Material: CRV(6150)
► Meet the requirements of german standard DIN1451
DIN7353
► 9 pcs/aet include 0~8 (the 6 is used as 9)
|
