SPECS :
|
Item No. |
Character size
(H) metric imperial |
Shank size
(inch) square |
Shank size
(inch) length |
|
ES00624 |
1.0mm(3/64") |
1/4 |
25/16 |
|
ES00624-01 |
1.5mm(1/16") |
1/4 |
25/16 |
|
ES00624-02 |
2.0mm(5/64") |
1/4 |
25/16 |
|
ES00624-03 |
2.5mm(3/32") |
1/4 |
25/16 |
|
ES00624-04 |
3.0mm(1/8") |
1/4 |
25/16 |
|
ES00624-05 |
4.0mm(5/32") |
5/16 |
23/8 |
|
ES00624-06 |
5.0mm(3/16") |
5/16 |
23/8 |
|
ES00624-07 |
6.0mm(1/4") |
3/8 |
29/16 |
|
ES00624-08 |
8.0mm(5/16") |
1/2 |
23/4 |
|
ES00624-09 |
10.0mm(3/8") |
1/2 |
23/4 |
|
ES00624-10 |
12.0mm(1/2") |
5/8 |
31/8 |
FEATURES :

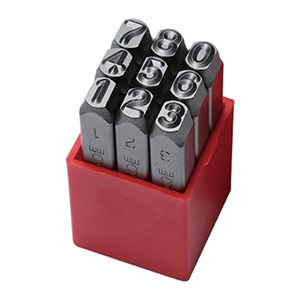

► Each set packed in a red plastic case
► Stamp is the sandblasting treatment
► Hardness: Front end font HRC 58~62 degrees
Tail end tempering HRC 38~46 degrees
► For hand-held, hammer-struck and/or machine
applications
► Each stamp is marked with the mm/ inch sizes on the
stamp’s body side
► Each stamp is cut-head sided
► Material: CRV(6150)
► 9 pcs/set include 0~8(the 6 is used as 9)
|
