SPECS:

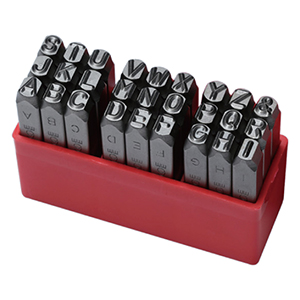

► Each set packed in a red plastic case
► Stamp is the sandblasting treatment
► Hardness: Front end font HRC 58~62 degrees
Tail end tempering HRC 38~46 degrees
► For hand-held, hammer-struck and/or machine applications
► Each stamp is marked with the mm/ inch sizes on the stamp’s body side
► Each stamp is cut-head sided
► Material: CRV(6150)
► 27 pcs/set include A~Z plus &
|
Item No. |
Character size (H) |
Shank size
(square)
|
Shank length |
|
ES00623 |
1.0mm (3/64") |
6.35 mm |
62 mm |
|
ES00623-01 |
1.5mm (1/16") |
6.35 mm |
62 mm |
|
ES00623-02 |
2.0mm (5/64") |
6.35 mm |
61 mm |
|
ES00623-03 |
2.5mm (3/32") |
6.35 mm |
61 mm |
|
ES00623-04 |
3.0mm (1/8") |
6.35 mm |
61 mm |
|
ES00623-05 |
4.0mm (5/32") |
7.93 mm |
61 mm |
|
ES00623-06 |
5.0mm (3/16") |
7.93 mm |
61 mm |
|
ES00623-07 |
6.0mm (1/4") |
9.52 mm |
67 mm |
|
ES00623-08 |
8.0mm (5/16") |
12.7 mm |
71 mm |
|
ES00623-09 |
10.0mm (3/8") |
12.7 mm |
71 mm |
|
ES00623-10 |
12.0mm (1/2") |
15.87 mm |
83 mm |
|
