SPECS :
|
Item No. |
Character size
(H) metric imperial |
Shank size
(mm) square |
Shank size
(mm) length |
|
ES00621 |
1.0mm(3/64") |
6.35 |
62 |
|
ES00621-01 |
1.5mm(1/16") |
6.35 |
62 |
|
ES00621-02 |
2.0mm(5/64") |
6.35 |
61 |
|
ES00621-03 |
2.5mm(3/32") |
6.35 |
61 |
|
ES00621-04 |
3.0mm(1/8") |
6.35 |
61 |
|
ES00621-05 |
4.0mm(5/32") |
6.35 |
59 |
|
ES00621-06 |
5.0mm(3/16") |
7.93 |
61 |
|
ES00621-07 |
6.0mm(1/4") |
7.93 |
61 |
|
ES00621-08 |
6.0mm(1/4") |
9.52 |
67 |
|
ES00621-09 |
7.0mm(9/32") |
11.11 |
68 |
|
ES00621-10 |
8.0mm(5/16") |
11.11 |
67 |
|
ES00621-11 |
8.0mm(5/16") |
12.7 |
71 |
|
ES00621-12 |
10.0mm(3/8") |
12.7 |
71 |
FEATURES :

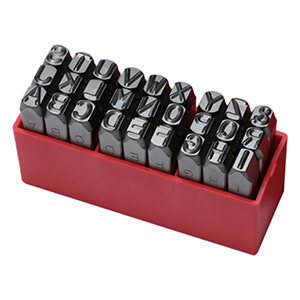

► Each set packed in a red plastic case
► Stamp is the sandblasting treatment
► Hardness: Front end font HRC 58~62 degrees
Tail end tempering HRC 38~46 degrees
► For hand-held, hammer-struck and/or machine
applications
► Each stamp is marked with the mm/ inch sizes on the
stamp’s body side
► Each stamp is cut-head sided
► Material: CRV(6150)
► 27 pcs/set include A~Z plus &
|
