SPECS:

► Capacity: 200 L

► Air input pressure: 4 - 9 KG/cm²

► Pressure ratio: 1 : 1

► Output pressure: 4 - 9 KG/cm²

► Deliver rate: 23 - 30 L/min

► Hose length: 20 FT

► Bung adapter: 2" MNPT

► Maximum viscosity: 300 SSU

► Usage: 0# - 120# 9 oil

FEATURES:

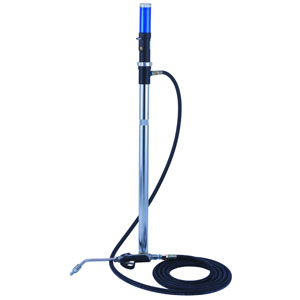

► This air operated oil pump is applicable for greater

     amount of oil or gear oil transmission in short

     distance pressure ratio is 1:1, suitable for

     0# - 120# oil.

► Low noise oil gun of new type is equipped, and

     nuzzle is with non-drip device.

► Idea for the usage of pumping engine oil in big

     volume in shout distance or for non-corrosive

     solvent.

► Suitable for all sorts of machinery, vehicles,

     airplanes, ships, etc the efficient instrument for

     infusing grease powerfully for lubrication &

     maintenance purpose.

► Two independent and separate cycle systems of

     pump out there to prevent air-compressor-exhaust

     moisture from getting to the oil inside the barrel and

     deteriorating its  quality.

PACKING:

► Box
