CONTENTS:

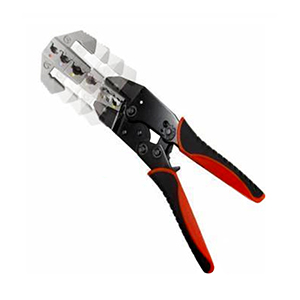

► 1 pc - Quick change ratchet crimper:
Body: carbon steel
Handle: PP+TPR (PAHs approved)

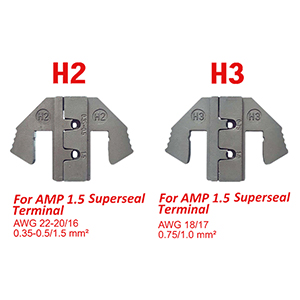

► 2 pcs - Jaw for (1.5) superseal terminal:
Size: HJ12-H2, [AWG 22-20/16]
[DIN 0.35-0.5/1.5 mm²]
HJ12-H3, [AWG 18/17]
[DIN 0.75/1.0 mm²]
Material: AISI-4140
Procedure: precision and wax-lost casting
Treatment: finished with heat treatment
Surface treatment: zinc phosphate
► Wire Seal for (1.5) superseal:
50 pcs - Φ1.0 Wire seal (green)
(For wire O.D.: 1.2~1.8mm)
50 pcs - Φ1.4 Wire seal (Yellow)
(For wire O.D.: 1.6~2.4mm)
Material: SIR-405 silicone
Seal O.D.: Φ6.1

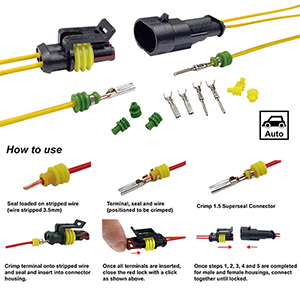

► Male / Female terminal for (1.5) superseal :
50 pcs - Male terminal [0.3~0.5mm2]
50 pcs - Female terminal [0.3~0.5mm²]
50 pcs - Male terminal [0.85~1.25mm²]
50 pcs - Female terminal [0.85~1.25mm²]
Terminal material: brass
Chemical treatment: Pre-Tin
Feeding type: horizontal
► Male / Female housing for (1.5) superseal:
6 pcs - 1 Pole male housing
6 pcs - 1 Pole female housing
4 pcs - 2 Pole male housing
4 pcs - 2 Pole female housing
4 pcs - 3 Pole male housing
4 pcs - 3 Pole female housing
2 pcs - 4 Pole male housing
2 pcs - 4 Pole female housing
2 pcs - 5 Pole male housing
2 pcs - 5 Pole female housing
2 pcs - 6 Pole male housing
2 pcs - 6 Pole female housing
Housing material: PA66 + GF
Color: black
Operating temperature range: -40°C~ 120°C

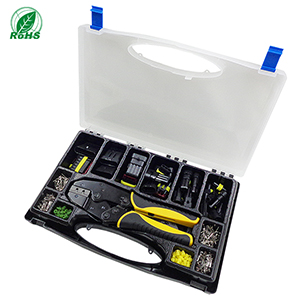

PACKING:
► PP box & Label
|
