SPECS :
► 8.7" Ratchet crimper:
Body: Carbon steel
Handle: PP+TPR
Suitable for: AWG 22-18 / 16-14 / 12-10
DIN 0.5-1.0 / 1.5-2.5 / 4-6 m㎡
► Ins-Ring terminal / Ins-Spade terminal:
Terminal material: Copper
Insulation material: PVC
Operating temperature: +105°C
Maximum electrical rating: 600V
► Ins-Butt connector:
Terminal material: Brass strip
Insulation material: PVC
Operating temperature: +75°C
Maximum electrical rating: 300V
► Ins-Female / Male disconnector:
Terminal material: Brass
Insulation material: PVC
Operating temperature: +75°C
Maximum electrical rating: 300V

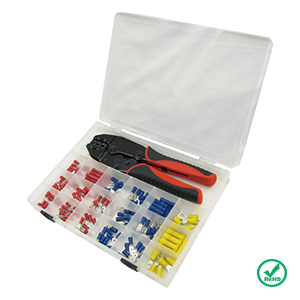

CONTENTS :
► 5pcs – Ins-Butt connectors
[AWG12-10][4~6mm²]
► 10pcs – Ins-Butt connectors
[AWG16-14][1.5~2.5mm²]
► 10pcs – Ins-Butt connectors
[AWG22-16][0.5~1.5mm²]
► 7pcs – Ins-Female disconnectors
[AWG16-14][1.5~2.5mm²]
► 7pcs – Ins-Female disconnectors
[AWG22-16][0.5~1.5mm²]
► 7pcs – Ins-Male disconnectors
[AWG16-14][1.5~2.5mm²]
► 7pcs – Ins-Male disconnectors
[AWG22-16][0.5~1.5mm²]
► 5pcs – Ins-Ring terminal#1/4
[AWG12-10][4~6mm²]
► 5pcs – Ins-Ring terminal#10
[AWG12-10][4~6mm²]
► 10pcs – Ins-Ring terminal#10
[AWG16-14][1.5~2.5mm²]
► 10pcs – Ins-Ring terminal#10
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Ring terminal#6
[AWG16-14][1.5~2.5mm²]
► 10pcs – Ins-Ring terminal#6
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Ring terminal#8
[AWG16-14][1.5~2.5mm²]
► 10pcs – Ins-Ring terminal#8
[AWG22-16][0.5~1.5mm²]
► 7pcs – Ins-Spade terminal#10
[AWG16-14][1.5~2.5mm²]
► 10pcs – Ins-Spade terminal#6
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Spade terminal#8
[AWG22-16][0.5~1.5mm²]
► 1pc – 8.7" Ratchet crimper
|
