SPECS :
► Heat shrink tube:
Material: Polyolefin
Operating temperature: -55°C~ +125°C
Shrink temperature: Start at 70°C;
Shrunk totally at 110°C
Shrink ratio: 2:1
Maximum electrical rating: 600V
► Non-ins-female disconnector/ Male disconnector:
Terminal material: Copper
► Open barrel disconnectors:
Terminal material: Brass
Chemical treatment: Brass finish
► Flameless heat blower:
Fuel: Butane
Gas container capacity: 6 ml
Operating time: 20 minutes
Approximate temperature: Up to 450°C

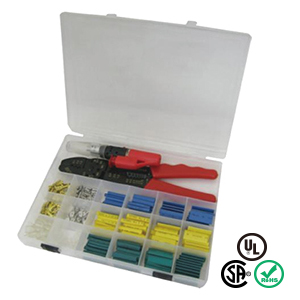

CONTENTS :
► 15pcs – Heat shrink tube-Φ3×30mm(Blue)
► 15pcs – Heat shrink tube-Φ5×30mm(Blue)
► 10pcs – Heat shrink tube-Φ7×30mm(Blue)
► 10pcs – Heat shrink tube-Φ9×30mm(Blue)
► 15pcs – Heat shrink tube-Φ3×30mm(Yellow)
► 15pcs – Heat shrink tube-Φ5×30mm(Yellow)
► 10pcs – Heat shrink tube-Φ7×30mm(Yellow)
► 10pcs – Heat shrink tube-Φ9×30mm(Yellow)
► 15pcs – Heat shrink tube-Φ3×30mm(Green)
► 15pcs – Heat shrink tube-Φ5×30mm(Green)
► 10pcs – Heat shrink tube-Φ7×30mm(Green)
► 10pcs – Heat shrink tube-Φ9×30mm(Green)
► 13pcs – PVC cover for female type-open barrel
disconnectors
► 13pcs – PVC cover for male type-open barrel
disconnectors
► 13pcs – Male-open barrel disconnectors
[AWG16-14][2mm²]
► 13pcs – Female-open barrel disconnectors
[AWG16-14][2mm²]
► 13pcs – Non-ins-male disconnector
[AWG16-14][1.5~2.5mm²]
► 13pcs – Non-ins-female disconnector
[AWG16-14][1.5~2.5mm²]

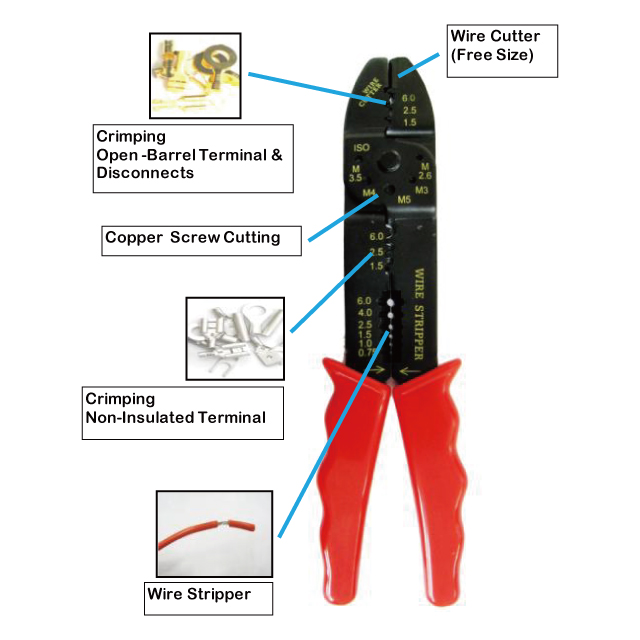

► 1pc – "9" 5-Way crimping tool(open barrel & non-
ins. terminal)
► 1pc – Flameless heat blower
FEATURES :
► Protection and insulation of components and wires
► Colour co-ordinated sizes
► Quick & simple to shrink by Heat gun
|
