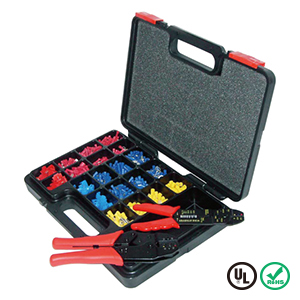

902 PCS RATCHET CRIMPING TOOL KIT

SPECS :

► 8.7" Ratchet crimper:

Body: Carbon steel

Handle: PP

Suitable for: AWG 22-18/ 16-14/ 12-10

DIN 0.5-1.0/ 1.5-2.5/ 4-6mm²

► Ins-Ring terminal:

Terminal material: Copper

Insulation material: PVC

Operating temperature: +105°C

Maximum electrical rating: 600V

► Ins-Butt connectors:

Terminal material: Brass strip

Insulation material: PVC

Operating temperature: +75°C

Maximum electrical rating: 300V

► Ins-Female/ Male disconnectors/ Bullet/

Fully receptacle disconnector:

Terminal material: Brass

Insulation material: PVC

Operating temperature: +75°C

Maximum electrical rating: 300V

► Stripping quick splice:

Terminal material: Brass

Insulation material: PP

Operating temperature: +105°C

Maximum electrical rating: 600V

CONTENTS :

► 1pc – 8" 4-Way crimping tool(HP020030)

► 1pc – 8.7" Ratchet crimper(HI00)

► 30pcs – Ins-Ring terminal#10

[AWG22-16][0.5~1.5mm²]

► 30pcs – Ins-Ring terminal#1/4

[AWG22-16][0.5~1.5mm²]

► 30pcs – Ins-Ring terminal#1/4

[AWG16-14][1.5~2.5mm²]

► 30pcs – Ins-Ring terminal#5/16

[AWG16-14][1.5~2.5mm²]

► 30pcs – Ins-Ring terminal#1/4

[AWG12-10][4~6mm²]

► 30pcs – Ins-Ring terminal#5/16

[AWG12-10][4~6mm²]

► 30pcs – Ins-Ring terminal#3/8

[AWG12-10][4~6mm²]

► 50pcs – Ins-Bullet disconnectors

[AWG22-16][0.5~1.5mm²]

► 50pcs – Ins-Fully receptacle disconnectors

[AWG22-16][0.5~1.5mm²]

► 50pcs – Ins-Bullet disconnectors

[AWG16-14][1.5~2.5mm²]

► 50pcs – Ins-Fully receptacle disconnectors

[AWG16-14][1.5~2.5mm²]

► 30pcs – Ins-Butt connectors

[AWG22-16][0.5~1.5mm²]

► 30pcs – Ins-Butt connectors

[AWG16-14][1.5~2.5mm²]

► 30pcs – Ins-Butt connectors

[AWG12-10][4~6mm²]

► 90pcs – Ins-Male disconnectors

[AWG22-16][0.5~1.5mm²]

► 45pcs – Ins-Female disconnectors

[AWG22-16][0.5~1.5mm²]

► 45pcs – Ins-Fully female disconnectors

[AWG22-16][0.5~1.5mm²]

► 90pcs – Ins-Male disconnectors

[AWG16-14][1.5~2.5mm²]

► 45pcs – Ins-Female disconnectors

[AWG16-14][1.5~2.5mm²]

► 45pcs – Ins-Fully female disconnectors

[AWG16-14][1.5~2.5mm²]

► 20pcs – Stripping quick splice

[AWG16-14][1.5~2.5mm²]

► 20pcs – Stripping quick splice

[AWG22-16][0.5~1.5mm²]

ITEM NO	QUOTATION
BS00517
