IMPORTANT:
► Straight out of the box, the handle of this press needs
to be re-positioned.
BEFORE USE:

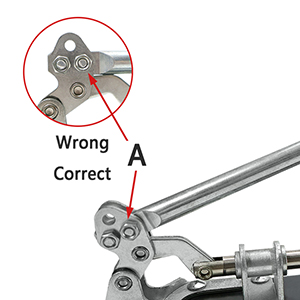

► Remove handle bolt "A"
► Lift handle as shown
► Re-install handle bolt
CAUTION:

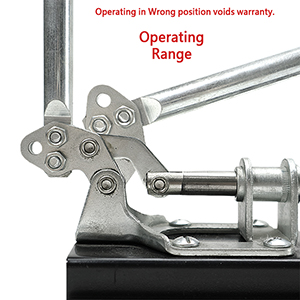

► For reliable operation, only apply force in operating
range.
► Project tube MUST be clean of all glue residue before
attempting assembly.
► Ensure tube ends are free of damage or burrs and align
parts well when assembling.

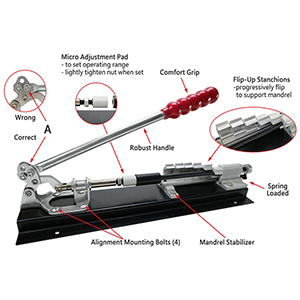

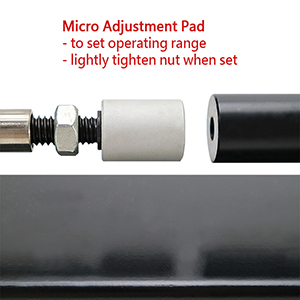

► Precision alignment of micro-adjust pad is made by
loosening four mounting bolts.
► Service sliding and pivoting points with light oil.
Periodically tighten all bolts.
► For assembling commercially available pen kits.
Not for DIY bullet pens.
|
