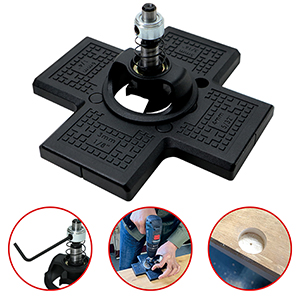

35MM HINGE JIG

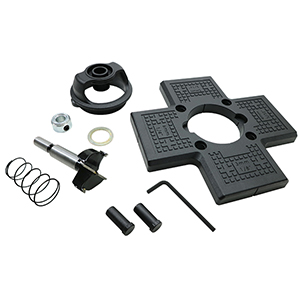

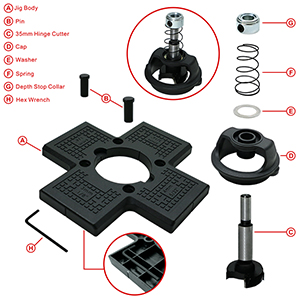

CONTENTS:
► 1 pc - Hinge jig unit
               Material: PA6 + 30%GF
► 1 pc - Cap
               Material: PA6 + 20%GF
► 1 pc - 35mm hinge cutter
               Material: S45C, YG8
► 2 pcs - Pin
                Material: PA6 + 20%GF
► 1 pc - Depth stop collar
               Material: 12L14
► 1 pc - 3mm allen wrench
               Material: 6150
► 1 pc - Washer
               Material: S45C
► 1 pc - Spring
               Material: SWB(72C)

PACKING:
► White box

USER MANUAL SETTING:

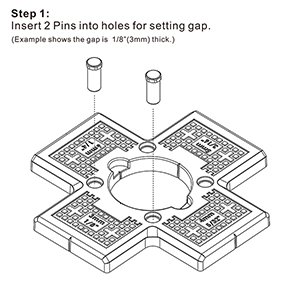

► Step 1:
     Insert 2 pins into holes for setting gap.
     ( Example shows the gap is 1/8"(3mm) thick. )

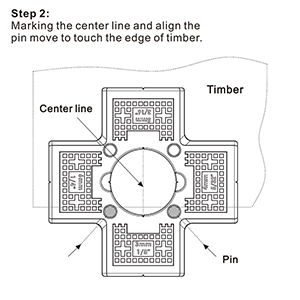

► Step 2:
     Marking the center line and align the pin move to
      touch the edge of timber.

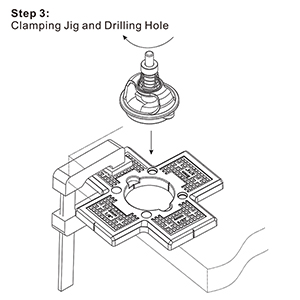

► Step 3:
     Clamping jig and drilling hole.

ITEM NO QUOTATION
DS01098
