FEATURES:
► Offers a wide range of nozzles for many different hot
melt glue gun applications.
► Besides all of our industrial glue guns, these nozzle

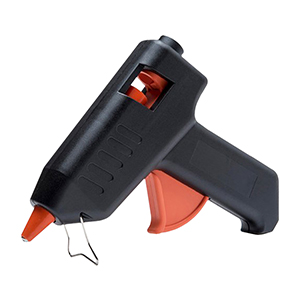

are also available for regular glue gun ES00706
► We also provide hot glue gun nozzle cover which
helps protect against burns and keep clean.
► Hot melt adhesive gun nozzles are helpful tools for
your hot melt glue guns and easy to change.
SPECS:
|
Item No. |
Product name & Size |
Description |
|
Item No. |
Product name & Size |
Description |
|
Item No. |
Product name & Size |
Description |
|
ES00723 |

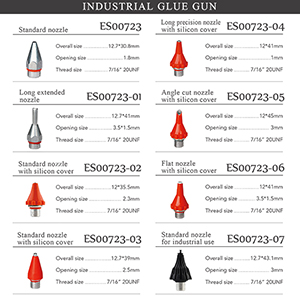

Standard nozzle
Overall size: 12.7 x 30.8 mm
Opening size: 1.8 mm
Thread size: 7/16" 20UNF |
 |
ES00723-05 |
Angle cut nozzle
with silicon cover
Overall size: 12 x 45 mm
Opening size: 3 mm
Thread size: 7/16" 20UNF |
 |
ES00723-10 |
Extended precision nozzle
Overall size: 12.7 x 41 mm
Opening size: 1 mm
Thread size: 7/16" 20UNF |
 |
|
ES00723-01 |
Long extended nozzle
Overall size: 12.7 x 41 mm
Opening size: 3.5 x 1.5 mm
Thread size: 7/16" 20UNF |
 |
ES00723-06 |
Flat nozzle
with silicon cover
Overall size: 12 x 41 mm
Opening size: 3.5 x 1.5 mm
Thread size: 7/16" 20UNF |
 |
ES00723-11 |
Extended angle cut nozzle
Overall size: 12.7 x 45 mm
Opening size: 3 mm
Thread size: 7/16" 20UNF |
 |
|
ES00723-02 |
Standard nozzle
with silicon cover
Overall size: 12 x 35.5 mm
Opening size: 2.3 mm
Thread size: 7/16" 20UNF |
 |
ES00723-07 |
Standard nozzle
for industrial use
Overall size: 12.7 x 43.1 mm
Opening size: 3 mm
Thread size: 7/16" 20UNF |
 |
ES00723-12 |
Wide spread 6-hole nozzle
for industrial use
Overall size: 30 x 37 x 12.8 mm
Opening size: 1.3 mm
Thread size: 7/16" 20UNF |
 |
|
ES00723-03 |
Standard nozzle
with silicon cover
Overall size: 12.7 x 39 mm
Opening size: 2.5 mm
Thread size: 7/16" 20UNF |
 |
ES00723-08 |

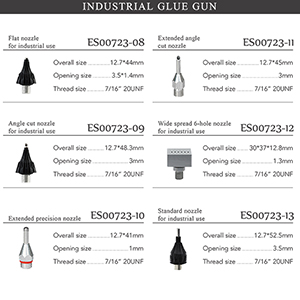

Flast nozzle
for industrial use
Overall size: 12.7 x 44 mm
Opening size: 3.5 x 1.4 mm
Thread size: 7/16" 20UNF |
 |
ES00723-13 |
Standard nozzle
for industrial use
Overall size: 12.7 x 52.5 mm
Opening size: 3.5 mm
Thread size: 7/16" 20UNF |
 |
|
ES00723-04 |
Long precision nozzle
with silicon cover
Overall size: 12 x 41 mm
Opening size: 1 mm
Thread size: 7/16" 20UNF |
 |
ES00723-09 |
Angle cut nozzle
for industrial use
Overall size: 12.7 x 48.3 mm
Opening size: 3 mm
Thread size: 7/16" 20UNF |
 |
|
|
|
|
