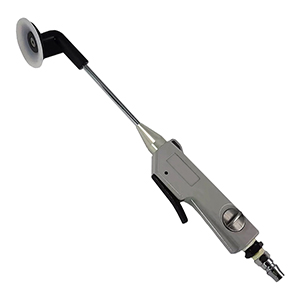

SPECS:
► Used with air compressor,
no need to use vacuum pump.
► Angle type
► Suction cup size: 50 mm
► Suction cup material: Silica gel
► Capacity: 3 kgs (for smooth iron)
► Weight: 0.31 kg (not include air inlet)
► Size: 31.5 x 5 x 5.5 cm (LxWxH)
► Working air pressure: 6.3 kgf/cm² (90 psi)
► Air inlet: 1/4"
► Hose size (I.D.): 5 mm
► Air cons.: 0.068 m³/min (2.4 SCFM)
► Sound pressure: 72.6 dBA
FEATURES:
► The conventional suction can only apply to smooth
surfaces, but the novel vacuum suction can apply to
coarse flat surfaces such as bricks, cartons,
polyurethane foam, flat wood, metal, paper, glass etc.
► The vacuum suction works real time onto the surface,
so the object can be moved. The vacuum suction is
null as the trigger is pushed after the object is moved.
► The ON/OFF state of the vacuum suction fails to
damage the surfaces.
► The air suction lifter can work as the air blow gun
without using the suction.
► The maximal capacity of the vacuum suction lifter
applying to smooth surfaces is up to 3 kgs.
► The Suction Cup of is a mark-free material that leaves
no trace on the object being handled (ex. glass,lenses,
wafer,panel,a glass substrate,touch screen glass,solar
panels...).
► The Max. apply temperature is 250 degrees
centigrade.
► The vacuum suction can apply to not only objects
suction in the water but also water suction.
► The aluminum alloy body is sturdy and durable.
► It is light and handy.
► With the low air consumption, the 2-in-1 air suction
lifter can work with the small 2 HP air compressor
without the additional vacuum pump
(vacuum generator)
► Available with 10 mm suction cup or 40 mm suction
cup.
