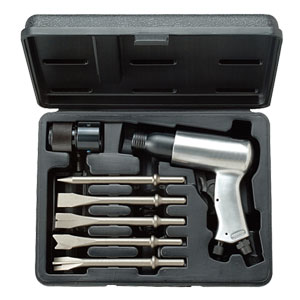

CONTENTS:
► 1 pc - Air hammer (JS00953)
► 1 pc - 1/4" Air nipple
► 1 pc - Retainer spring
► 1 pc - Quick change retainer
► 5 pcs - 7" Chisel
SPECS:
|
Item. NO |
JS01014 |
JS01014-01 |
JS01014-02 |
|
Air Inlet |
PT/NPT |
1/4" |
|
Hose Inlet |
Inch |
3/8" |
|
Blows Per Minute |
BPM |
3000 |
|
Air Comsumption |
CFM (LPM) |
6.2 (176) |
|
Piston Diameter |
mm |
Ø19 x 46 |
|
Piston Stroke |
mm (inch) |
56 (2.2) |
|
Chisel Shank |
mm (inch) |
10.2 (0.401)
Round
|
10 (0.393)
Hex
|
11 (0.433)
Hex
|
|
Overall Length |
mm (inch) |
190 (7.5) |
|
Net Weight |
kg (lb) |
1.5 (3.3) |
|
Air Pressure |
PSI (Bar) |
≦90 (6.2) |
|
Soud Pressure Level |
dBA |
104 |
|
Soud Power Level |
dBA |
115 |
|
Vibration Level |
M/ Sec2 |
15.14 |
FUNCTION:
► Superior design with internal spring components provides
greater durability.
► Alloy steel cylinder and heat treated piston for longer life.
► Easy to maintain, with an easy out throttle valve assembly.
► The econimical air hammer for fast cutting action.
► Sturdy and simple design for wide application.
► Professional touch trigger for total control.
|
