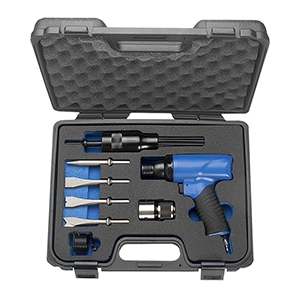

VIBRO-REDUED MED. BARREL AIR HAMMER KIT
CONTENTS:
► 1 pc - Air hammer (JS00990)
► 1 pc - 1/4" Air nippl
► 1 pc - Retainer spring
► 1 pc - Quick change retainer
► 1 pc - Needle scaler attachment
► 4 pcs - 5" Chisel

SPECS:
Item. NO JS01224 JS01224-01 JS01224-02
Air Inlet PT/NPT 1/4"
Hose Inlet Inch 3/8"
Blows Per Minute BPM 3000
Air Comsumption CFM (LPM) 7.8 (221)
Piston Diameter mm Ø19 x 48
Piston Stroke mm (inch) 62.5 (2.5)
Chisel Shank mm (inch)
10.2 (0.401)
Round
10 (0.393)
Hex
11 (0.433)
Hex
Overall Length mm (inch) 180 (7.1)
Net Weight kg (lb) 1.7 (3.7)
Air Pressure PSI (Bar) ≦90 (6.2)

FUNCTION:
► Front exhaust designed avoid cutting injury from chips
     and debris.
► Integrated retainer chuck allows user to change chisels
     quickly.
► 3 types cylinder shank size:
     Round 10.2mm / Hex 10.2mm / Hex 11mm.
► 70 degrees handle grip designed for user's comfort.
► Lightweight robust aluminium alloy casing.
► Patented design vibration damping valve.
► Simplified and high efficiency work.
► Dependable and robust design.
► High power to weight ratio.

ITEM NO QUOTATION
JS01224
JS01224-01
JS01224-02
