SPECS :
► Wire seal:
Material: SIR-405 silicone
Φ1.4 & Φ2.5 Color: Green
Φ2.8 Color: Blue
(Seal O.D.: Φ4.3 / Φ7.2)

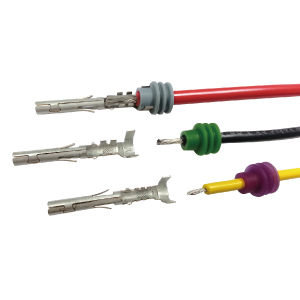

► Receptacles male/ Female terminal:
Terminal material: Brass
Chemical treatment: Pre-matt tin
Feeding type: Horizontal
► Male/ Female housing:
Housing material: PA6/PA66
Color: Black
Operating temperature range: -40°C~120°C
► Terminal release tool:
Material: Aluminum hexagon housing with anodized,
stainless steel blade(SUS310)

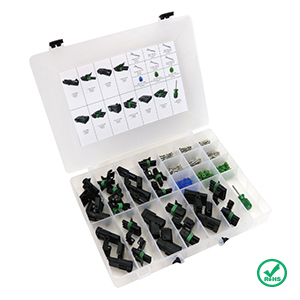

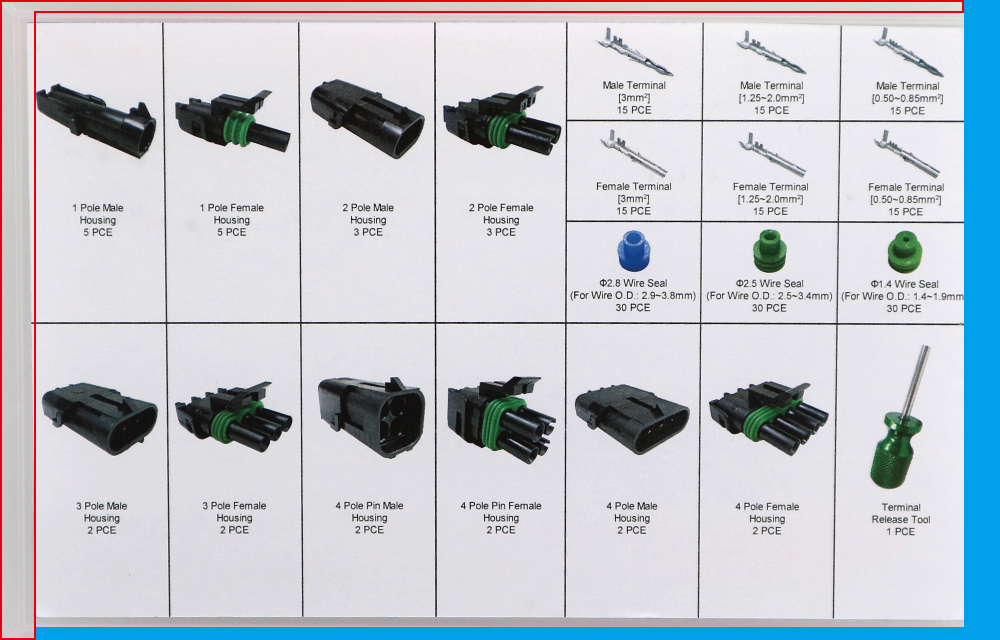

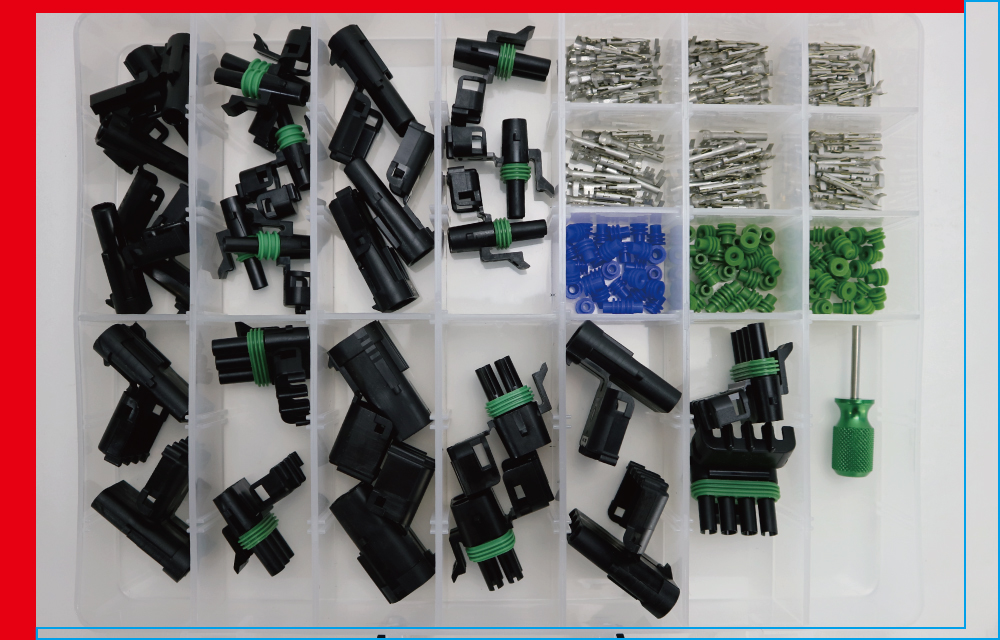

CONTENTS :
► 30pcs – Φ1.4 Wire seal for delphi weather pack
(for wire O.D.: 1.4~1.9mm)
► 30pcs – Φ2.5 Wire seal for delphi weather pack
(for wire O.D.: 2.5~3.4mm)
► 30pcs – Φ2.8 Wire seal for delphi weather pack
(for wire O.D.: 2.9~3.8mm)
► 15pcs – Receptacles male terminal for delphi weather
pack[0.50~0.85mm²]
► 15pcs – Receptacles female terminal for delphi
weather pack[0.50~0.85mm²]
► 15pcs – Receptacles male terminal for delphi weather
pack[1.25~2.0mm²]
► 15pcs – Receptacles female terminal for delphi
weather pack[1.25~2.0mm²]
► 15pcs – Receptacles male terminal for delphi weather
pack[3mm²]
► 15pcs – Receptacles female terminal for delphi
weather pack[3mm²]

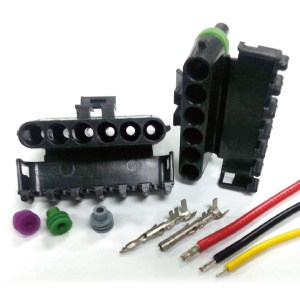

► 5pcs – 1 Pole receptacles type male housing for delphi
weather pack
► 5pcs – 1 Pole receptacles type female housing for
delphi weather pack
► 3pcs – 2 Pole receptacles type male housing for delphi
weather pack
► 3pcs – 2 Pole receptacles type female housing for
delphi weather pack
► 2pcs – 3 Pole receptacles type male housing for delphi
weather pack
► 2pcs – 3 Pole receptacles type female housing for
delphi weather pack
► 2pcs – 4 Pole pin type male housing for delphi
weather pack
► 2pcs – 4 Pole pin type female housing for delphi
weather pack
► 2pcs – 4 Pole receptacles type male housing for delphi
weather pack
► 2pcs – 4 Pole receptacles type female housing for
delphi weather pack
► 1pc – Terminal release tool
|
