SPECS :
► Wire seal for (1.5) superseal:
Material: SIR-405 silicone
Φ1.0 Color: Green
Φ1.4 Color: Yellow
(Seal O.D.: Φ6.1)
► Male/Female terminal for (1.5) Superseal:
Terminal material: Brass
Chemical treatment: Pre-tin
Feeding type: Horizontal
► Male/Female Housing for (1.5) Superseal:
Housing material: PA66+GF
Color: Black
Operating temperature range: -40°C~120°C
► Stamped & formed pin/ Socket contact:
Material: Thick copper alloy
Plating: Nickel
► Receptacle connector(with wedgelock):
Material: PA66 GF15
Grommet material: VMQ
Wedgelock material: Plastic
► Plug connector(with wedgelock):
Material: PA66 GF15
Grommet/ Front seal material: VMQ
Wedgelock material: Plastic

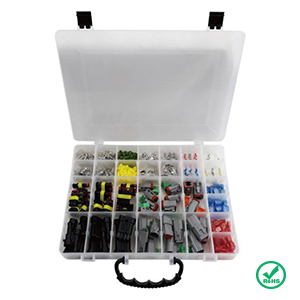

CONTENTS :
► 40pcs – Male terminal for (1.5) superseal
[0.3~0.5mm²]
► 40pcs – Female terminal for (1.5) superseal
[0.3~0.5mm²]
► 80pcs – Φ1.0 Wire seal for (1.5) superseal
(For Wire O.D.: 1.2~1.8mm)
► 40pcs – Male terminal for (1.5) superseal
[0.85~1.25mm²]
► 40pcs – Female terminal for (1.5) superseal
[0.85~1.25mm²]
► 80pcs – Φ1.4 Wire seal for (1.5) superseal
(For Wire O.D.: 1.6~2.4mm)
► 6pcs – 2 Pole male housing for (1.5) superseal
► 6pcs – 2 Pole female housing for (1.5) superseal
► 4pcs – 3 Pole male housing for (1.5) superseal
► 4pcs – 3 Pole female housing for (1.5) superseal
► 3pcs – 4 Pole male housing for (1.5) superseal
► 3pcs – 4 Pole female housing for (1.5) superseal
► 35pcs – Stamped & formed pin contact(Size 16)
[AWG 18-14] (1060-16-0122)
► 35pcs – Stamped & formed socket contact(Size 16)
[AWG 18-14] (1062-16-0122)
► 35pcs – Stamped & formed pin contact(Size 16)
[AWG 20-16] (1060-16-0622)
► 35pcs – Stamped & formed socket contact(Size 16)
[AWG 20-16] (1062-16-0622)
► 4pcs – 2 Cavity receptacle connector
(Incl. Wedgelock)(DT04-2P & W2P)
► 4pcs – 2 Cavity plug connector(Incl. Wedgelock)
(DT06-2S & W2S-P012)
► 3pcs – 3 Cavity receptacle connector
(Incl. Wedgelock)(DT04-3P & W3P)
► 3pcs – 3 Cavity plug connector(Incl. Wedgelock)
(DT06-3S & W3S-P012)
► 3pcs – 4 Cavity receptacle connector
(Incl. Wedgelock)(DT04-4P & W4P)
► 3pcs – 4 Cavity plug connector(Incl. Wedgelock)
(DT06-4S & W4S)
► 20pcs – Double tin solder sleeve wire splices heat
shrink tube [1.7 x 26mm]-White
► 15pcs – Double tin solder sleeve wire splices heat
shrink tube [2.7 x 40mm]-Red
► 10pcs – Double tin solder sleeve wire splices heat
shrink tube [4.5 x 40mm]-Blue
► 5pcs – Double tin solder sleeve wire splices heat
shrink tube [6.0 x 40mm]-Yellow
► 15pcs – Nylon fully Ins. Female disconnector
[AWG16~14][1.5-2.5mm²]-Blue
► 15pcs – Nylon fully Ins. Male disconnector
[AWG16~14][1.5-2.5mm²]-Blue
► 15pcs – Nylon fully Ins. Female disconnector
[AWG22~16][0.5-1.5mm²]-Red
► 15pcs – Nylon fully Ins. Male disconnector
[AWG22~16][0.5-1.5mm²]-Red
|
