SPECS :
► Ins-ring terminal/ Ins-spade terminal:
Terminal material: Copper
Insulation material: PVC
Operating temperature: +105°C
Maximum electrical rating: 600V
► Ins-butt connectors:
Terminal material: Brass strip
Insulation material: PVC
Operating temperature: +75°C
Maximum electrical rating: 300V
► Ins-Female/ Male disconnector/ Bullet/
Fully receptacle disconnector:
Terminal material: Brass
Insulation material: PVC
Operating temperature: +75°C
Maximum electrical rating: 300V

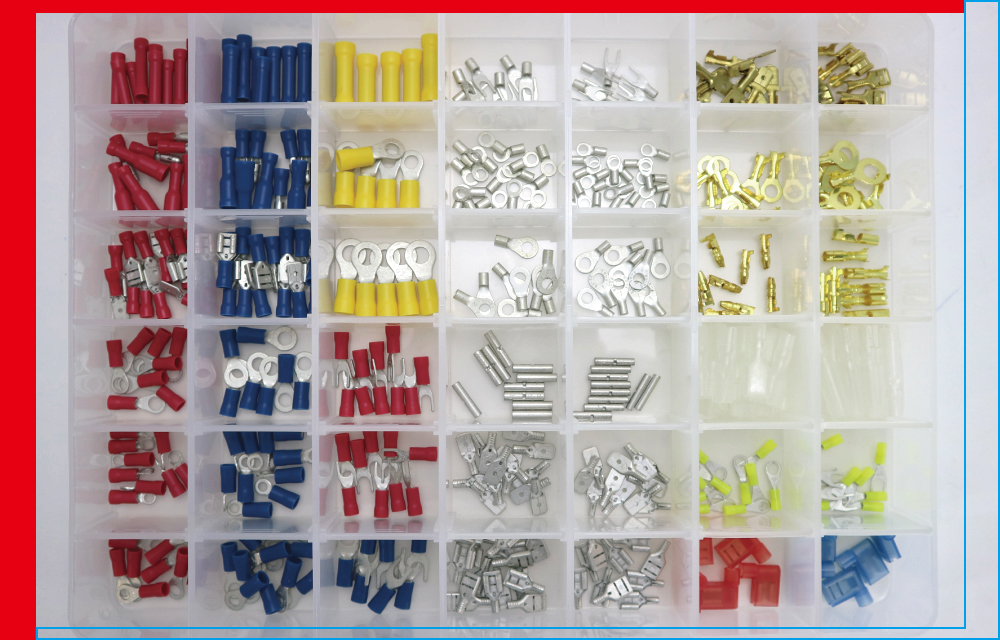

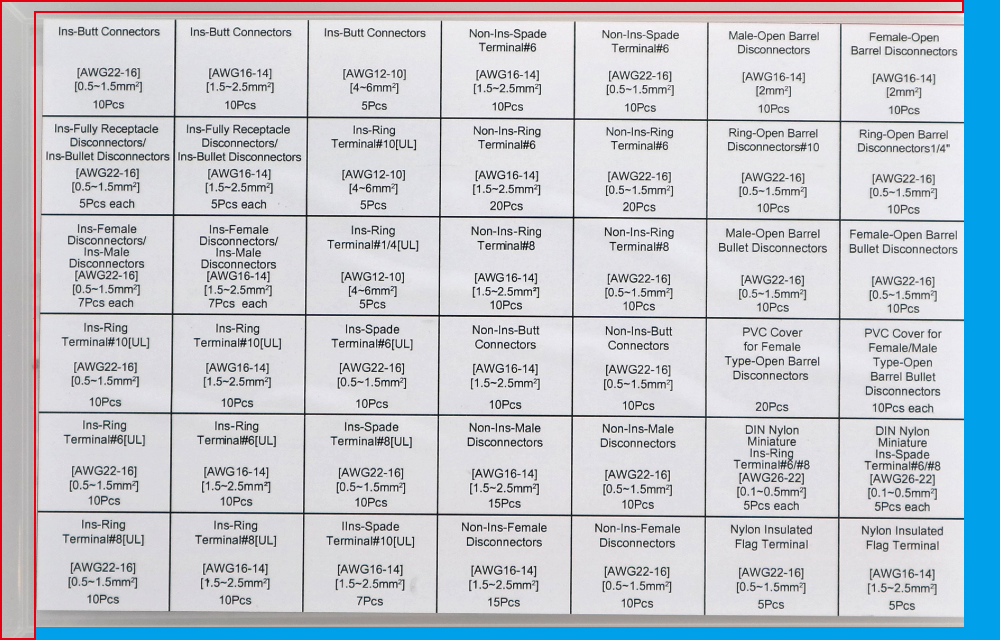

CONTENTS :
► 10pcs – Ins-Butt connectors
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Butt connectors
[AWG16-14][1.5~2.5mm²]
► 5pcs – Ins-Butt connectors
[AWG12-10][4~6mm²]
► 5pcs – Ins-Bullet disconnectors
[AWG22-16][0.5~1.5mm²]
► 5pcs – Ins-Fully receptacle disconnectors
[AWG22-16][0.5~1.5mm²]
► 5pcs – Ins-Bullet disconnectors
[AWG16-14][1.5~2.5mm²]
► 5pcs – Ins-Fully receptacle disconnectors
[AWG16-14][1.5~2.5mm²]
► 5pcs – Ins-Ring terminal#10[UL]
[AWG12-10][4~6mm²]
► 7pcs – Ins-Female disconnectors
[AWG22-16][0.5~1.5mm²]
► 7pcs – Ins-Male disconnectors
[AWG22-16][0.5~1.5mm²]
► 7pcs – Ins-Female disconnectors
[AWG16-14][1.5~2.5mm²]
► 7pcs – Ins-Male disconnectors
[AWG16-14][1.5~2.5mm²]
► 5pcs – Ins-Ring terminal#1/4[UL]
[AWG12-10][4~6mm²]
► 10pcs – Ins-Ring terminal#10[UL]
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Ring terminal#10[UL]
[AWG16-14][1.5~2.5mm²]
► 10pcs – Ins-Spade terminal#6[UL]
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Ring terminal#6[UL]
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Ring terminal#6[UL]
[AWG16-14][1.5~2.5mm²]
► 10pcs – Ins-Spadeterminal#8[UL]
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Ring terminal#8[UL]
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ins-Ring terminal#8[UL]
[AWG16-14][1.5~2.5mm²]
► 7pcs – Ins-Spade terminal#10[UL]
[AWG16-14][1.5~2.5mm²]
► 10pcs – Non-Ins-spade terminal#6
[AWG16-14][1.5~2.5mm²]
► 10pcs – Non-Ins-spade terminal#6
[AWG22-16][0.5~1.5mm²]
► 20pcs – Non-Ins-Ring terminal#6
[AWG16-14][1.5~2.5mm²]
► 20pcs – Non-Ins-Ring terminal#6
[AWG22-16][0.5~1.5mm²]
► 10pcs – Non-Ins-Ring terminal#8
[AWG16-14][1.5~2.5mm²]
► 10pcs – Non-Ins-Ring terminal#8
[AWG22-16][0.5~1.5mm²]
► 10pcs – Non-Ins-Butt connectors
[AWG16-14][1.5~2.5mm²]
► 10pcs – Non-Ins-Butt connectors
[AWG22-16][0.5~1.5mm²]
► 15pcs – Non-Ins-Male disconnectors
[AWG16-14][1.5~2.5mm²]
► 10pcs – Non-Ins-Male disconnectors
[AWG22-16][0.5~1.5mm²]
► 15pcs – Non-Ins-Female disconnectors
[AWG16-14][1.5~2.5mm²]
► 10pcs – Non-Ins-Female disconnectors
[AWG22-16][0.5~1.5mm²]
► 10pcs – Male-Open barrel disconnectors
[AWG16-14][2mm²]
► 10pcs – Female-Open barrel disconnectors
[AWG16-14][2mm²]
► 10pcs – Ring-Open barrel disconnectors#10
[AWG22-16][0.5~1.5mm²]
► 10pcs – Ring-Open barrel disconnectors1/4"
[AWG22-16][0.5~1.5mm²]
► 10pcs – Male-Open barrel bullet disconnectors
[AWG22-16][0.5~1.5mm²]
► 10pcs – Female-Open barrel bullet disconnectors
[AWG22-16][0.5~1.5mm²]
► 20pcs – PVC Cover for female type-open barrel
disconnectors
► 10pcs – PVC Cover for female type-open barrel bullet
disconnectors
► 10pcs – PVC Cover for male type-open barrel bullet
disconnectors
► 5pcs – DIN Nylon miniature Ins-Ring terminal#6
[AWG26-22][0.1~0.5mm²]
► 5pcs – DIN Nylon miniature Ins-Ring terminal#8
[AWG26-22][0.1~0.5mm²]
► 5pcs – DIN Nylon miniature Ins-Spade terminal#6
[AWG26-22][0.1~0.5mm²]
► 5pcs – DIN Nylon miniature Ins-Spade terminal#8
[AWG26-22][0.1~0.5mm²]
► 5pcs – Nylon insulated flag terminal
[AWG22-18][0.5~1.5mm²]
► 5pcs – Nylon insulated flag terminal
[AWG16-14][1.5~2.5mm²]
|
