SPECS :
|

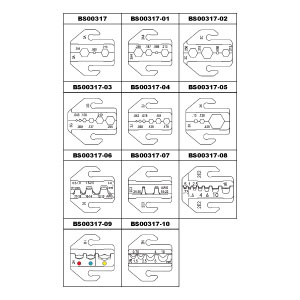

Item NO. |
Dimension |
Cable type |
|
BS00317 |
.256" / .068" / .213"
6.50 / 1.73 / 5.41 m
|
RG 58, 59, 62 |
|
BS00317-01 |
.255" / .187" / .068" / .213"
6.48 / 4.75 / 1.73 / 5.41 mm
|
RG 58, 59, 62, 174 |
|
BS00317-02 |
.256" / .319" / .068" / .213"
6.50 / 8.10 / 1.73 / 5.41 mm
|
RG 58, 59, 62, 6 |
|
BS00317-03 |
.043" / .068" / .100" / .137" / .213" / .255"
1.09 / 1.73 / 2.54 / 3.48 / 5.41 / 6.48 mm
|
RG 58, 59, 62, 174,
Fiber optic
|
|
BS00317-04 |
.042" / .068" / .078" / .128" / .151" / .178"
1.07 / 1.73 / 1.98 / 3.25 / 3.84 / 4.52 mm
|
RG 174, 179, Belden 8218
Fiber optic
|
|
BS00317-05 |
.100" / .128" / .429"
2.54 / 3.25 / 10.90 mm
|
RG 8, 11, 174, 179, 213 |
|
BS00317-06 |
AWG 20-18 / 16-14 / 12-10
DIN 0.5-1 / 1.5-2.5 / 4-6 mm2
|
Non-insulated terminal or
Open barrel terminal
|
|
BS00317-07 |
AWG 24-30 / 18-22
DIN 0.25-0.05 / 1.0-0.35 mm2
|
S-Sub terminal |
|
BS00317-08 |
AWG 20 / 18 / 17 / 16 / 14 / 12 / 10 / 8 / 6
DIN 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4 / 6 / 10 / 16 mm2
|
Pin terminal insulated or
Non-insulated ferrules
|
|
BS00317-09 |
AWG 20-18 / 16-14 / 12-10
DIN 0.5-1 / 1.5-2.5 / 4-6 mm2
|
Insulated terminal |
|
BS00317-10 |
AWG 16 / 14 / 10 / 8
DIN 1.5 / 2.5 / 6 / 10 mm2
JIN 1.4 / 2.0 / 5.5 / 8 mm2
|
Non-insulated terminal |

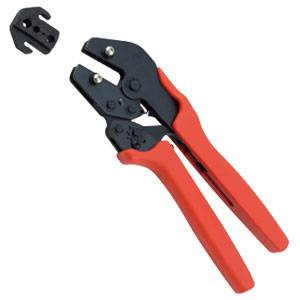

Features :
► Designed with quick change device for interchanging various
die sets rapidly.
► Lower crimp force ratchet designed with a built in safety
release mechanism.
► Angled head with steamline ergonomic handle design.
► OEM & specific design are available.
|
