DESCRIPTIONS:

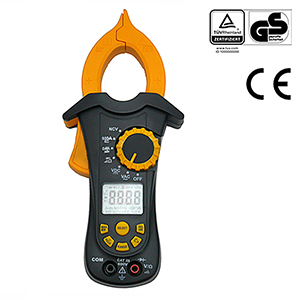

► This is a auto-ranging, high accuracy and stable hand
held clamp meter to make electrical maintenance safe
and easy.
► With special designed IC to support true RMS,
the meter is available to measure AC/DC voltage
to 600V, AC current to 600A and resistance to 60MΩ;
also having the capability to test diode, continuity and
non contact voltage sensing.
► Sub switch included Function Select,
Max-Min Indication, Value Hold, Range Select,
Relative Value Measurement,
Inrush Current Indication, Illumination and
Back-light.
FEATURES:
► AC/DC voltage measurement
► AC current measurement
► Resistance measurement
► Diode measurement
► Continuity measurement
► Non-contact voltage sensing
► Back-light and illumination
► AAA battery x 4
SPECIFICATIONS:
|
General Specification |
|
DC Voltage Range |
0~600V DC |
|
AC Voltage Range |
0~600V AC |
|
AC Current Range |
0~600A |
|
Resistance Range |
0~60MΩ |
|
DC Voltage: 0~600V DC |
|
Range |
Resolution |
Accuracy |
|
600 mV |
0.1 mV |
±1.5% ±3 digits |
|
6V |
0.001V |
|
60V |
0.01V |
|
600V |
0.1V |
|
600 mV |
0.1 mV |
|
AC Voltage: 0~600V AC |
|
Range |
Resolution |
Accuracy |
|
600 mV |
0.1 mV |
±2% ±3 digits |
|
6V |
0.001V |
|
60V |
0.01V |
|
600V |
0.1V |
|
600 mV |
0.1 mV |
|
AC Current: 0~600A |
|
Range |
Resolution |
Accuracy |
|
60A |
0.01A |
±2.5% ±8 digits |
|
600A |
0.1A |
±2.5% ±5 digits |
|
Resistance: 0~60M Ω |
|
Range |
Resolution |
Accuracy |
|
600Ω |
0.1Ω |
±1% ±3 digits |
|
6kΩ |
0.001kΩ |
|
60kΩ |
0.01kΩ |
|
600kΩ |
0.1kΩ |
|
6MΩ |
0.001MΩ |
±2% ±3 digits |
|
60MΩ |
0.01MΩ |
|
Diode
and
Continuity
|
Display
Diode forward voltage 0~3V
Buzzer is buzzing,
resistance is < 50 ohm
|
|
