DESCRIPTIONS:

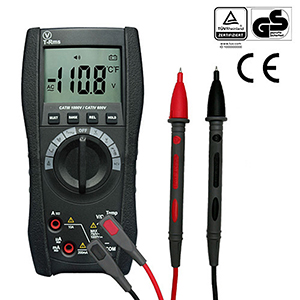

► This is a low power consumption, high accuracy and
stable hand held 3 1/2 digits (2000 counts)
multi-meter; with special designed IC to support true
RMS measurement.

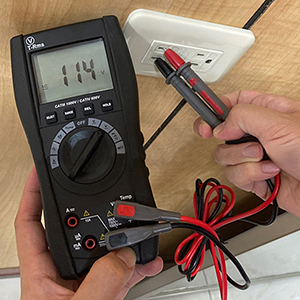

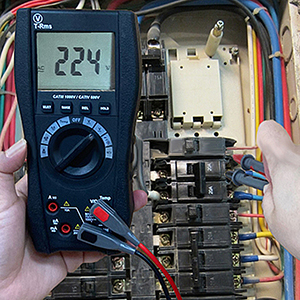

► It performs measurements of DC voltage/current,
true RMS AC voltage/current, resistance, diode,

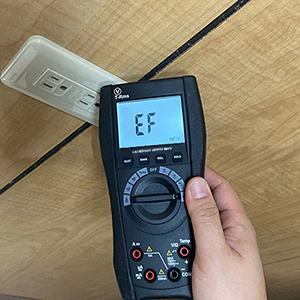

continuity, temperature and non-contact voltage
sensing.
FEATURES:
► DC/AC voltage measurement
► DC/AC current measurement
► Resistance measurement
► Diode/ continuity measurement
► Temperature measurement
► Non-contact voltage sensing
► Auto power-off
► Back-light and illumination

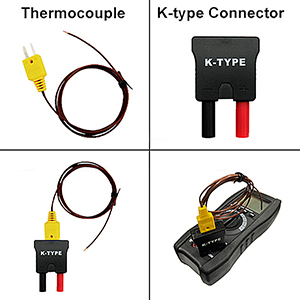

► With accessories of thermocouple(optional)
and K-type connector(optional) for temperature
measurement.
SPECIFICATIONS:
|
General Specification |
|
Display |
LCD |
|
Maximum Resolution |
2000, 3 1/2 digits |
|
Range |
Auto / Manual |
|
Data Refresh Rate |
3 times / sec |
|
Low Power Indication |
Yes |
|
Working Temperature |
0~50 °C
32~122 °F
|
|
Storage Temperature |
-10~60 °C
14~140 °F
|
|
Power |
9V 6F22 Battery |
|
Rating |
AC: 0~750V / 0~10A
DC: 0~1000V / 0~10A
Ω: 0~19.99M
TEM: -200~1300 °C
|
|
Humidity |
< 80% RH |
|
CAT Category |
CAT IV 600V
CAT III 1000V
|
|
Function Switch |
|
Select |
Switch to select measurement function. |
|
Range |
Switch between Auto / Manual range. |
|
REL |
Switch to activate the relative value measurement. |
|
Hold |
Switch to hold the value. |
|
