SPECS:
► Material thickness: 12.7mm(1/2") ~ 38(1-1/2")
► Drill bit size: 9.5mm(3/8")
► Square driver bit: NO.2 × 150mm(6")
► Hole pitch: 30mm(1-3/16")
► Dust port: Internal 31mm(1-1/4")
FEATURES:
► Professional pocket hole jig system of twin holes
► High hardened aluminum material body parts
► High hardened metal drill guide
► Easy to use and quickly remove for install

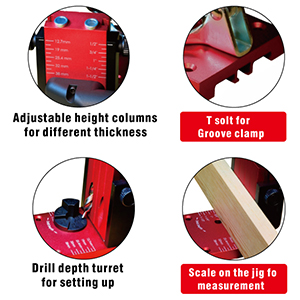

► Adjust for wood materials from 1/2" to 1-1/2"
► Easy to set drill depth and tighten
CONTENTS:
► Twin holes aluminum jig
► Dust extraction coupling
► Drill setting turret
► Material end plate(for mobile use)
► 3/8" hss step drill bit
► Square driver 150mm bit NO.2 robertson
► Depth stop collar
► Hex wrench (for depth stop collar use)
► Hex wrench (for mobile use)
► 4pcs bench fixing screws
► #7 1" coarse square driver screws with pan-head
× 10pcs
► #8 1-1/4" coarse square driver screws with washer-
head × 10pcs
► #8 1-1/2" coarse square driver screws with washer-
head × 10pcs
► #8 2" coarse square driver screws with washer-head
× 10pcs
► #8 2-1/2" coarse square driver screws with washer-
head × 10pcs
|
