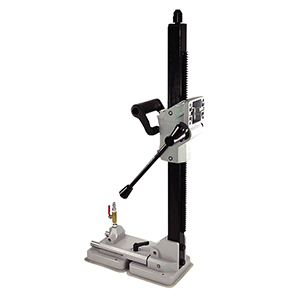

SPECS:
► Used with air compressor, no need to use
vacuum pump.
► Without electric drill
► Max. core drill bit: 168 mm
► Net weight: 11.81 kgs
► Height: 780 mm
► Iron fixing base size: 200 x 151 mm (1.17 kgs)
► Vacuum suction base size: 330 x 165 mm
► Max. extended length: 120 mm
► Working air pressure: 6.3 kgf/cm² (90 psi)
► Air cons.: 0.21 m³/min (7.5 scfm)
► Lift capacity: 150 kgs
FEATURES:
► The conventional suction can only apply to smooth
surfaces, but the novel vacuum suction fixing base
can apply to wet and coarse flat surfaces such as
cement wall, lumber plywood, stone back, etc.

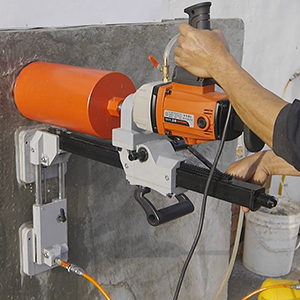

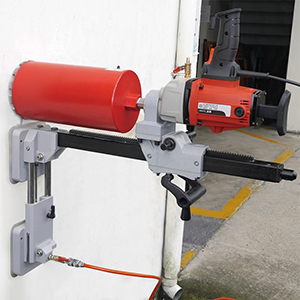

► The vacuum suction firms the machine onto the
surface of the wall firmly and directly free of extra
fixing devices. ( It is necessary to confirm that the
vacuum suction works indeed onto the surface
prior to releasing the machine. )
► The workpiece and the machine are attached firmly
and closely by the vacuum suction, so no moving
workpiece bothers the worker.
► Without the additional vacuum pump (vacuum
generator), only use a general air compressor.
► With high efficiency, smooth wall of hole and
precision.
|
