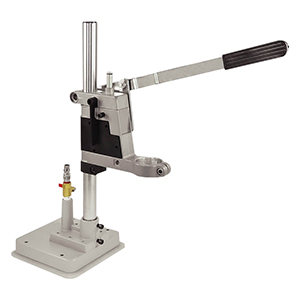

SPECS:
► Clamp holding spec: Ø43 mm
► Max. core drill bit: 180 mm
► Max. drilling travel: 60 mm
► Net weight: 3.12 kgs
► Height: 430 mm
► Vacuum suction base size: 165 x 165 mm
► Working air pressure: 6.3 kgf/cm² (90 psi)
► Air cons.: 0.08 m³/min (2.75 scfm)
► Lift capacity: 100 kgs
► Used with air compressor, no need to use
vacuum pump.

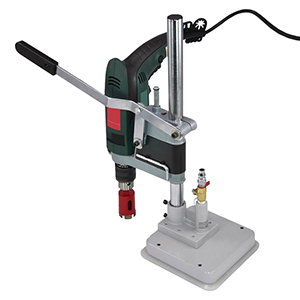

► Without electric drill
FEATURES:

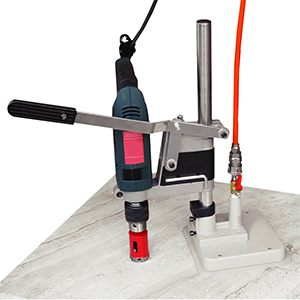

► The conventional suction can only apply to smooth
surfaces, but the novel vacuum suction fixing base
can apply to wet and coarse flat surfaces such as
cement wall, lumber plywood, stone back, etc.

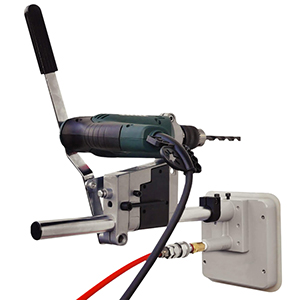

► The vacuum suction firms the machine onto the
surface of the wall firmly and directly free of extra
fixing devices.
(It is necessary to confirm that the vacuum suction
works indeed onto the surface prior to releasing the
machine. )
► The workpiece and the machine are attached firmly
and closely by the vacuum suction, so no moving
workpiece bothers the worker.
► Without the additional vacuum pump
(vacuum generator),
ONLY use a general Air Compressor.
► The Drill Stand (Vacuum Suction Type) can replace
the Portable Magnetic Drilling Machine and is used
on various coarse and flat surface. The Portable
Magnetic Drilling Machine can be only used on iron
material.
► Lightweight (about 3 kgs). Easy to carry out when
going out.
► With high efficiency, smooth wall of hole and
precision.

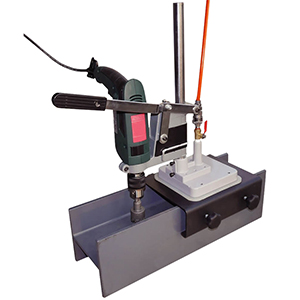

► Suitable as heavy machinery or moving hardly object,
(ex. building reinforcing bars, big steel plates,
building & decorating service … etc).
