SPECS:
► The round ends of T-Handle are easy and good for reinforced clamping by
transfer tools.

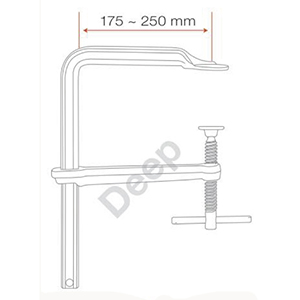

► The clamping pressure of T-Handle Clamp is based on the span 150mm.
► T-Handle Clamp Rail: 27×13 & 30×15, Span 2000, 2500, 3000, 3500mm,
etc. special sizes could be ordered.

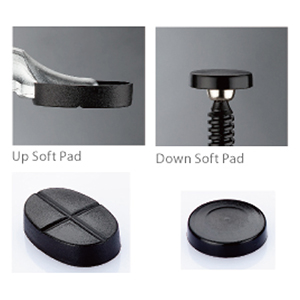

► Extra P.P. pads can be ordered together with the clamp or separately as
accessories.
|
item NO. |
Span × Depth |
Rail |
Weight |
Pressure |
Pack |
|
DS01044 |
400 × 175mm |
27.0 × 13.0mm |
2.57kg |
700kg |
10pcs |
|
DS01044-01 |
600 × 175mm |
3.06kg |
6pcs |
|
DS01044-03 |
1000 × 175mm |
4.03kg |
|
DS01044-04 |
300 × 200mm |
30.0 × 15.0mm |
2.97kg |
800kg |
6pcs |
|
DS01044-07 |
600 × 200mm |
3.92kg |
|
DS01044-09 |
1000 × 200mm |
5.20kg |
4pcs |
|
DS01044-10 |
400 × 250mm |
30.0 × 15.0mm |
3.55kg |
700kg |
6pcs |
|
DS01044-12 |
600 × 250mm |
4.19kg |
|
DS01044-14 |
1000 × 250mm |
5.46kg |
4pcs |
|
