SPECS:
► The round ends of T-Handle are easy and good for
reinforced clamping by transfer tools.
► The clamping pressure of T-Handle Clamp is based on the
span 150mm.
► T-Handle Clamp Rail: 27×13 & 30×15, Span 2000, 2500,
3000, 3500mm, etc. special sizes could be ordered.

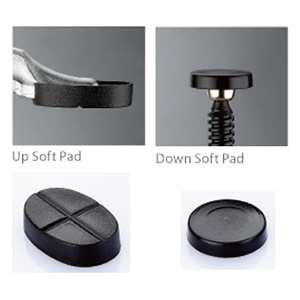

► Extra P.P. pads can be ordered together with the clamp or
separately as accessories.
|

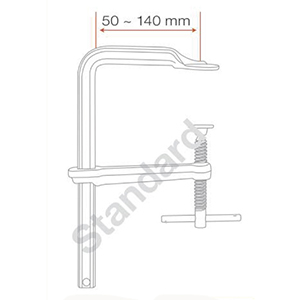

item NO. |
Span × Depth |
Rail |
Weight |
Pressure |
Pack |
|
DS01043 |
100 × 50mm |
11.5 × 5.7mm |
0.19kg |
220kg |
10pcs |
|
DS01043-01 |
200 × 50mm |
0.23kg |
|
DS01043-02 |
300 × 50mm |
0.28kg |
|
DS01043-03 |
120 × 60mm |
13.5 × 6.5mm |
0.28kg |
270kg |
10pcs |
|
DS01043-04 |
200 × 60mm |
0.33kg |
|
DS01043-05 |
300 × 60mm |
0.40kg |
|
DS01043-06 |
160 × 80mm |
16.0 × 7.5mm |
0.50kg |
300kg |
10pcs |
|
DS01043-08 |
300 × 80mm |
0.62kg |
|
DS01043-09 |
400 × 80mm |
0.70kg |
|
DS01043-10 |
200 × 100mm |
19.5 × 9.5mm |
0.88kg |
450kg |
10pcs |
|
DS01043-11 |
300 × 100mm |
1.00kg |
|
DS01043-12 |
500 × 100mm |
1.26kg |
|
DS01043-13 |
250 × 120mm |
22.0 × 10.5mm |
1.23kg |
550kg |
10pcs |
|
DS01043-16 |
500 × 120mm |
1.65kg |
|
DS01043-19 |
1000 × 120mm |
2.45kg |
6pcs |
|
DS01043-20 |
300 × 140mm |
25.0 × 12.0mm |
1.85kg |
670kg |
10pcs |
|
DS01043-21 |
300 × 120mm |
25.0 × 12.0mm |
1.76kg |
750kg |
10pcs |
|
DS01043-23 |
500 × 120mm |
2.18kg |
|
DS01043-24 |
600 × 120mm |
2.39kg |
|
DS01043-25 |
800 × 120mm |
27.0 × 13.0mm |
3.27kg |
1000kg |
6pcs |
|
DS01043-27 |
1250 × 120mm |
4.38kg |
4pcs |
|
DS01043-28 |
1500 × 120mm |
4.90kg |
|
DS01043-29 |
200 × 120mm |
30.0 × 15.0mm |
2.30kg |
1200kg |
10pcs |
|
DS01043-33 |
500 × 120mm |
3.30kg |
6pcs |
|
DS01043-38 |
1500 × 120mm |
6.47kg |
|
