SPECS :

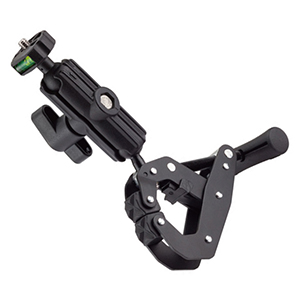

► Cantilever C clamp with locking arm can be used for horizontal laser machine, smartphone,
tablet, time lapse camera, actioncam, monitoring equipment.... It connects all with the
International common size 1/4" screw including the accessories.

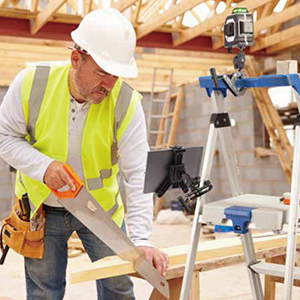

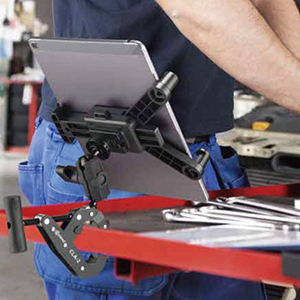

► Cantilever Locking Arm could be your best helper when you are working with a tablet. It could
be clamped to a rod, bar (diameter 16~50mm) and plate (thickness <50mm). Round object
could be clamped by the inner jaw or whole jaw. The inner jaw provides 3-point clamping
tightly in the range 16~30mm for a small cylinder conveniently.
► Locking arm design could adjust the angle of view to make your working more comfortable and
easier.
|
|

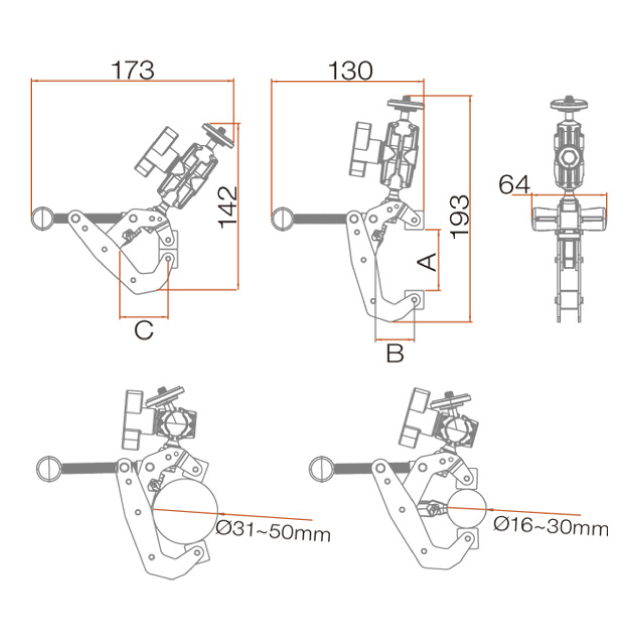

Length |
Width |
Thickness |
SpanA |
SpanB |
SpanC |
Weight |
Pressure |
Locking arm loading |
Mount screw
|
Pack |
|
Extend |
193mm |
173mm |
64mm |
2"(50mm) |
33mm |
41mm |
0.21kg |
200kg/ 400lbs |
2.7kg/ 6lbs |
1/4"-20 |
50pcs |
|
Storage |
142mm |
130mm |
64mm |

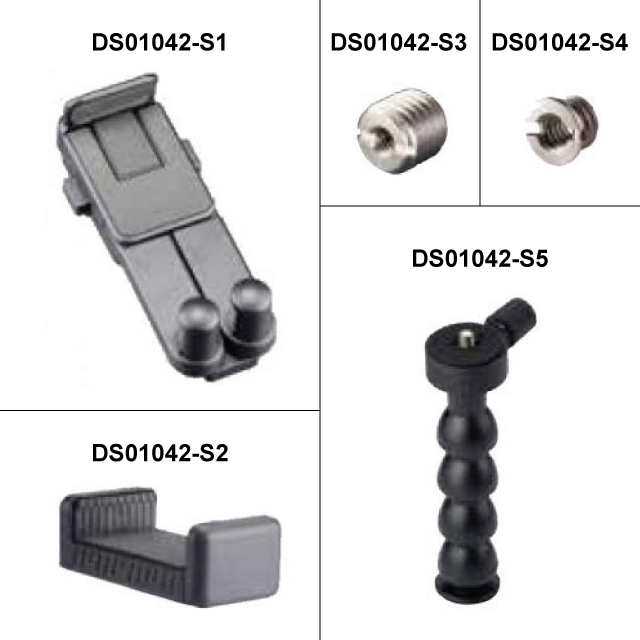

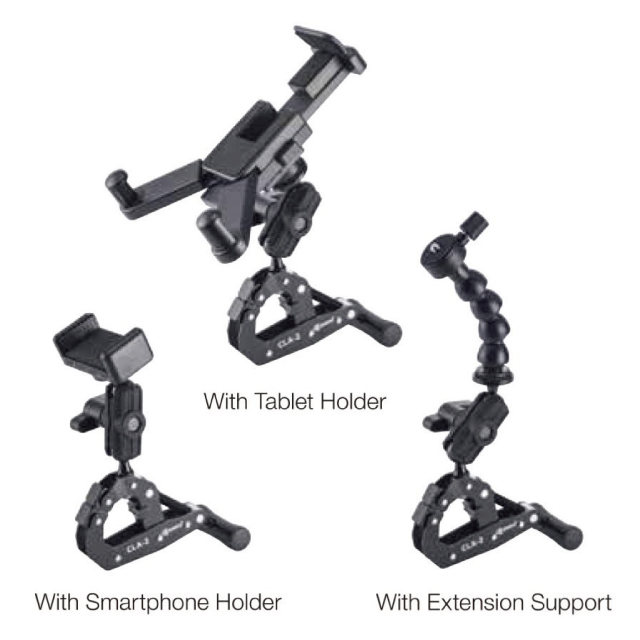

ACCESSORIES :
|
DS01042-S1 |
Tablet Holder |
Min.Screen size: 5" |
|
Minimum width: 125mm |
|
Max.Screen size: 12.9" |
|
Maximum width: 221mm |
|
Material: Plastic(ABS) |
|
Nut material: Steel |
|
Net weight: 120g |
|
DS01042-S2 |
Smartphone Holder |
Min.Screen size: 4" |
|
Minimum width: 58mm |
|
Max.Screen size: 6" |
|
Maximum width: 90mm |
|
Material: Plastic(ABS) |
|
Nut material: Steel |
|
Net weight: 28g |
|
DS01042-S3 |
Screw Adapter |
Femail: 1/4"-20 |
|
Male: 5/8"-11 |
|
Material: Stainless steel |
|
Net weight: 14g |
|
DS01042-S4 |
Screw Adapter |
Femail: 1/4"-20 |
|
Male: 3/8"-16 |
|
Material: Stainless steel |
|
Net weight: 2g |
|
DS01042-S5 |
Extension Support |
Extension size: 4-1/2"/ 115mm |
|
Material: Aluminium alloy, Plastic(POM) |
|
Net weight: 84g |
|
