SPECS :
|
item NO. |
Span × Depth |
Rail |
Weight |
Pressure |
Pack |
|
DS01039 |
150 × 80mm |
22.0× 10.5mm |
1.36kg |
600kg |
10pcs |
|
DS01039-01 |
200 × 80mm |
1.44kg |
|
DS01039-02 |
500 × 80mm |
1.93kg |
|
DS01039-03 |
800 × 80mm |
2.42kg |
|
DS01039-04 |
300 × 100mm |
27.0× 13.0mm |
2.72kg |
700kg |
6pcs |
|
DS01039-05 |
600 × 100mm |
3.46kg |
|
DS01039-06 |
1000 × 100mm |
4.41kg |
|
DS01039-07 |
300 × 140mm |
27.0× 13.0mm |
2.90kg |
600kg |
6pcs |
|
DS01039-08 |
600 × 140mm |
3.67kg |
|
DS01039-09 |
1000 × 140mm |
4.65kg |
FEATURES :

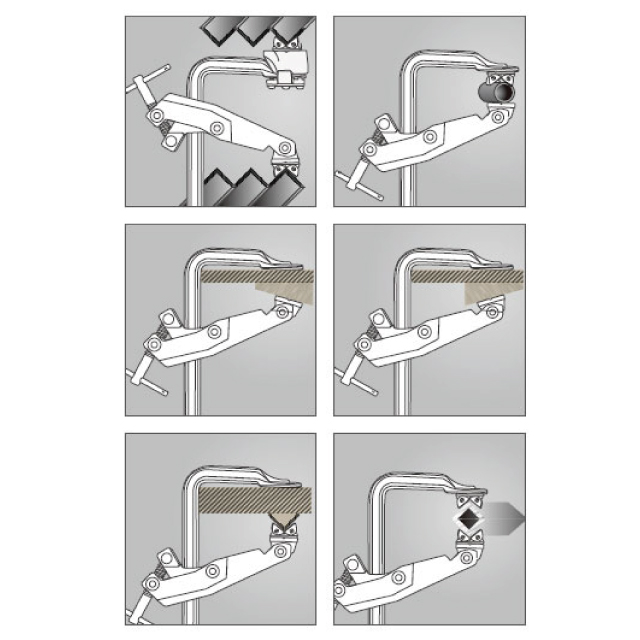

► It is specifically designed for clamping inward and
outward to meet various clamping applications
► Simply changing the slide-in direction of the sliding arm
can shift such clamping direction
► The cantilever helps to obtain maximum clamping pressure
with minimum tightening force
► The clamping pressure is measured at the span of 150mm
|
