SPECS :
► Parallel Jaw:
Large parallel clamping surfaces.
Forged sliding arm inside (medium carbon steel).
► Rail: high quality profiled steel with Zinc plating.

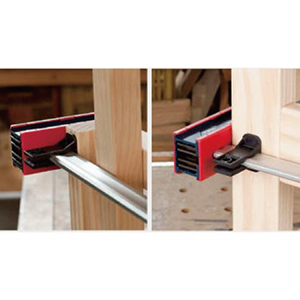

► Pressure Caps:
Replaceable.
Protect delicate surfaces.
Repellant to glue.
Resistant to paint and grease solvents.
► Workpiece platform:
Prevents directly contacting by the workpiece on the rail.
Round corner design prevents from damaging the workpiece.
► Stopper: Can be taken off and converted the sliding arm to spreading
function.
► Ergonomic Handle:
High quality 2-component plastic handle.
Easy and comfortable to hold.

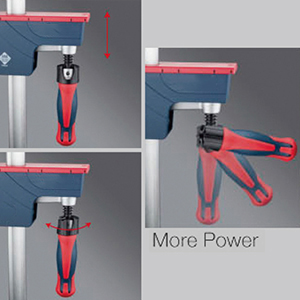

► Pivot Handle With Swivel :
User friendly design.
Swivel helps pivot handle stable when moving the sliding arm.
|
item NO. |

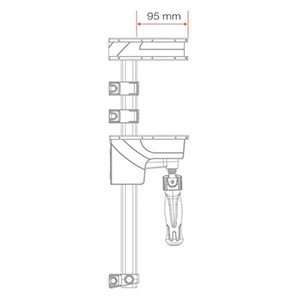

Span × Depth |
Spreading |
Rail |
Weight |
Pressure |
Pack |
|
DS01035 |
300 × 95mm |
245~435mm |
29.0 × 9.0mm |
2.30kg |
710kg |
8pcs |
|
DS01035-01 |
600 × 95mm |
245~735mm |
3.00kg |
4pcs |
|
DS01035-02 |
800 × 95mm |
245~935mm |
3.30kg |
|
DS01035-03 |
1000 × 95mm |
245~1135mm |
3.50kg |
|
DS01035-04 |
1250 × 95mm |
245~1385mm |
4.10kg |
|
DS01035-05 |
1500 × 95mm |
245~1635mm |
4.60kg |
|
DS01035-06 |
2000 × 95mm |
245~2135mm |
5.50kg |
|
DS01035-07 |
2500 × 95mm |
245~2635mm |
6.40kg |
|
