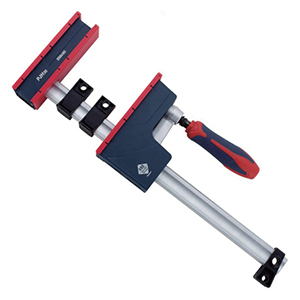

SPECS :
► Clamping force: 700kgf
► Parallel Jaw:
Large parallel clamping surfaces.
Forged sliding arm inside(medium carbon steel).
► Rail: high quality profiled steel with Zinc plating.
► Pressure Caps:
Replaceable.
Protect delicate surfaces.
Repellant to glue.
Resistant to paint and grease solvents.
► Workpiece platform:
Prevents directly contacting by the workpiece on the rail
Round corner design prevents from damaging the workpiece

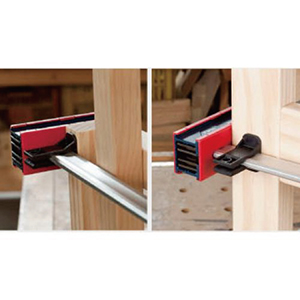

► Stopper: Can be taken off and converted the sliding arm to
spreading function.
► Ergonomic Handle:
High quality 2-component plastic handle.
Easy and comfortable to hold.
|
item NO. |

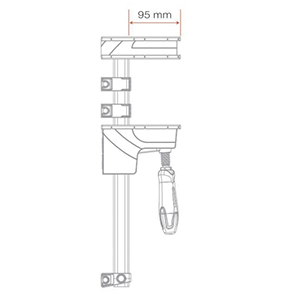

Span × Depth |
Spreading |
Rail |
Weight |
Pressure |
Pack |
|
DS01034 |
300 × 95mm |
245~435mm |
29.0 × 9.0mm |
2.30kg |
710kg |
8pcs |
|
DS01034-01 |
600 × 95mm |
245~735mm |
2.80kg |
4pcs |
|
DS01034-02 |
800 × 95mm |
245~935mm |
3.10kg |
|
DS01034-03 |
1000 × 95mm |
245~1135mm |
3.50kg |
|
DS01034-04 |
1250 × 95mm |
245~1385mm |
3.90kg |
|
DS01034-05 |
1500 × 95mm |
245~1635mm |
4.50kg |
|
DS01034-06 |
2000 × 95mm |
245~2135mm |
5.50kg |
|
DS01034-07 |
2500 × 95mm |
245~2635mm |
6.10kg |
|
