item NO. |
Span × Depth |
Spreading |
Rail |
Weight |
Pressure |
Pack |
|
DS01033 |
200 × 80mm |
145~300mm |
16.0 × 7.5mm |
0.65kg |
320kg |
10pcs |
|
DS01033-01 |
300 × 80mm |
145~400mm |
0.74kg |
|
DS01033-02 |
400 × 80mm |
145~500mm |
0.82kg |
FEATURES :
► Ergonomically designed
► Industrial safety
► Diamond handle:
Labor-saving: With pivot structure, more easy to apply clamping
force
Space-saving: After clamping, the bending handle save much more
space than traditional straight handle.

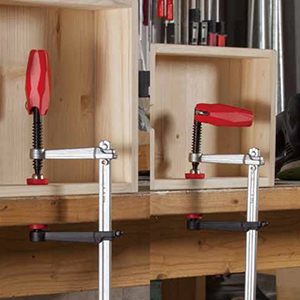

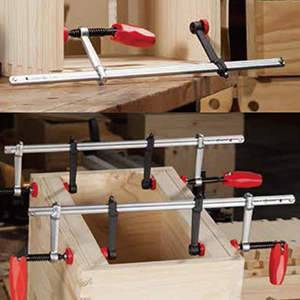

► F clamp which operates from top of the clamp. Spreading clamp
for light duty. Double clamping function clamp on one rail
► ANS System(Anti-slip system, patented)
► Soft pad attached: Protecting the workpiece. Material: P.P.
► The stopper: Hex socket screws (M5)
