SPECS :
► Applications:
1. For transporting inflammable bulk materials and in
areas liable to contain explosive mixtures
(explosion protection)
2. For powdery solids such as dust, powder and fibre
3. For gaseous media such as vapor and smoke
4. For air conditioning and ventilation technology

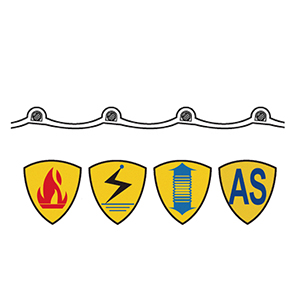

► Construction: Spring steel wire integrated in wall
► Material: Wall: Antistatic PVC
Spiral: Zinc-coated spring steel wire
► Standard color: Transparent
► Temperature range: -10 °C approx. to +70 °C approx.
short time to +80 °C approx.
► ø 38 to ø 203mm
► Delivery Variants: Customer-specific product marking, further colors,
diameters and lengths available on reguest
|
item NO. |
I.D. |
O.D. |
Overpressure bar |
Vacuum bar |
Bending radius |
Weight |
Stock length |
|
DS01017 |
63mm |
72mm |
0.300 |
0.100 |
72mm |
0.33kg/m |
15m |
|
DS01017-01 |
102mm |
111mm |
0.200 |
0.050 |
111mm |
0.57kg/m |
15m |
|
DS01017-02 |
152mm |
161mm |
0.140 |
0.030 |
161mm |
0.90kg/m |
15m |
FEATURES :
► Optimized flow properties
► Good resistance to alkalis and acids
► Good resistance to chemicals
► Capable of electrostatic discharge by grounding the spiral
► Compressible 3:1
► Flame-retardant according to UL94-HB
► Electrical and surface resistance ≤10⁹Ω
|
