SPECS :
► Applications:
1. For high flow-rates of hot and abrasive solids such
as powder, chip and granules
2. For industrial vacuum cleaners, granule conveying
systems, printing machines, blowers and compressors
3. As robust protection hose

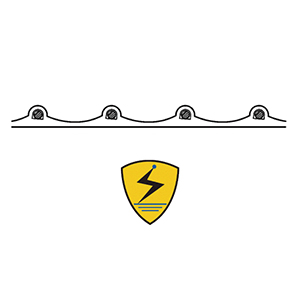

► Construction: Spring steel wire integrated in wall
Wall thickness 1.5mm approx.
► Material: Wall: special premium ester-polyurethane
spiral: Spring steel wire
► Standard color: Transparent
► Temperature range: -40°C approx. to +90°C approx.
short time to +125°C approx.
► ø 32 to ø 203mm
► Delivery Variants: Customer-specific product marking, further colors,
diameters and lengths available on reguest
|
item NO. |
I.D. |
O.D. |
Overpressure bar |
Vacuum bar |
Stock length |
Weight |
|
DS01016 |
63mm |
71mm |
1.815 |
0.675 |
15m |
0.84kg/m |
|
DS01016-01 |
102mm |
111mm |
1.190 |
0.355 |
15m |
1.49kg/m |
|
DS01016-02 |
152mm |
161mm |
0.800 |
0.180 |
15m |
2.41kg/m |
FEATURES :
► Highly abrasion-proof
► Smooth interior
► Increased pressure and vacuum resistance
► High tensile strength and tear resistant
► Good resistance to chemicals
► Good resistance to UV and ozone
► Small bending radius
► Gas and liquid tight
► Capable of electrostatic discharge by grounding the
spiral
► Electrical and surface resistance ≤10¹⁰ Ω
|
