SPECS :
► Applications: Ventilation for various kinds of
equipment

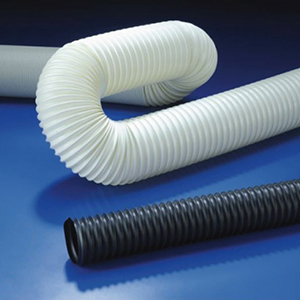

► Construction: Spring steel wire integrated in wall.
Heavily corrugated and capable of axial
compression into fixed position
► Material: Wall: PP
Spiral: Spring steel wire
► Standard color: Ivory and black
► Temperature range: -20 °C approx. to +80 °C approx.
► ø 25 to ø 254mm
► Delivery Variants: Customer-specific product marking, further colors,
diameters and lengths available on reguest
|
item NO. |
I.D. |
O.D. |
Overpressure bar |
Vacuum bar |
Bending radius |
Weight |
Stock length |
|
DS01014 |
63mm |
73mm |
0.350 |
0.120 |
80mm |
0.24kg/m |
5m |
|
DS01014-01 |
102mm |
112mm |
0.230 |
0.060 |
120mm |
0.40kg/m |
5m |
|
DS01014-02 |
152mm |
162mm |
0.160 |
0.036 |
176mm |
0.80kg/m |
5m |
► Good resistance to alkalis and acids
► Good resistance to chemicals
► Good resistance to UV and ozone
|
