SPECS :
► Applications:
1. For abrasive solids such as dust, powder, fibers and
chip
2. For industrial air movement and fume control
3. For extraction arms and dust collection equipment
4. For CNC machinine

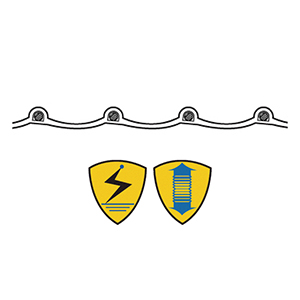

► Construction: Spring steel wire integrated in wall
Wall thickness 0.4 mm approx.
► Material: Wall: Ester-polyurethane
Spiral: Spring steel wire
► Standard color: Transparent
► Temperature Range: -40 °C approx. to +90 °C approx.
Short time to +125 °C approx.
► ø 51 to ø 305mm
► Delivery Variants: Customer-specific product marking, further colors,
diameters and lengths available on reguest
|
item NO. |
I.D. |
O.D. |
Overpressure bar |
Vacuum bar |
Bending radius |
Weight |
Stock length |
|
DS01013 |
63mm |
71mm |
0.550 |
0.180 |
71mm |
0.34kg/m |
15m |
|
DS01013-01 |
102mm |
110mm |
0.350 |
0.080 |
110mm |
0.52kg/m |
15m |
|
DS01013-02 |
152mm |
160mm |
0.170 |
0.050 |
160mm |
0.76kg/m |
15m |
FEATURES :
► Good resistance to chemical and ozone
► Small bending radius
► Gas and liquid tight
► Abrasion-proof
► Excellent compressible 3:1
► Capable of electrostatic discharge by grounding the
spiral
► Good tensile
|
