SPECS :
► Applications:
1. For powdery solids such as dust, powder and fibre
2. For gaseous media such as vapor and smoke
3. For air conditioning and ventilation technology

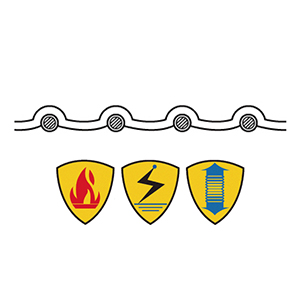

► Construction: Spring steel wire integrated in wall
► Material: Wall: High-grade soft PVC
Spiral: Spring steel wire
► Standard color: Grey and transparent
► Temperature range: -10 °C approx. to +70 °C approx.
Short time to +80 °C approx.
► ø 38 to ø 254mm
► Delivery Variants: Customer-specific product marking, further colors,
diameters and lengths available on reguest
|
item NO. |
I.D. |
O.D. |
Overpressure bar |
Vacuum bar |
Bending radius |
Weight |
Stock length |
|
DS01012 |
63mm |
72mm |
0.300 |
0.100 |
72mm |
0.33kg/m |
15m |
|
DS01012-01 |
102mm |
110mm |
0.200 |
0.050 |
110mm |
0.57kg/m |
15m |
|
DS01012-02 |
152mm |
160mm |
0.140 |
0.030 |
160mm |
0.90kg/m |
15m |
► Good resistance to alkalis and acids
► Good resistance to chemicals
► Capable of electrostatic discharge by grounding the spiral
► Compressible 3:1
► Flame-retardant according to UL94-HB
|
