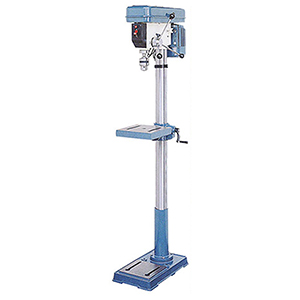

DRILL PRESS
SPECS:

Item No. LS00062
Max. drilling capacity 5/8" (16 mm)
Spindle taper MT2/JT3 / MT2/B18
Chuck 5/8" (16 mm)
Max. spindle stroke 3-1/8" (80 mm)
Swing 13-3/4" (350 mm)
Number of speed 12.16
Spindle speed 50Hz (R.P.M.) 162 - 3000 (16S)
60Hz (R.P.M.) 195 - 3500 (16S)
Max. distance from spindle to table 30-3/4" (781 mm)
Max. distance from spindle to base 48" (1219 mm)
Diameter of column 2-7/8" (73 mm)
Size of table 11-7/15" (290mm)-0
9" x 9" (230 x 230 mm)-S
Size of base 17-3/4" x 10-1/2"
(450 x 265 mm)
Overall height 62-1/2" (1588 mm)
Motor 1/3 HP
Weight (net) / (gross) 55 kgs / 59 kgs
CUFT 5.07'

PACKING:
► Carton box

ITEM NO QUOTATION
LS00062
