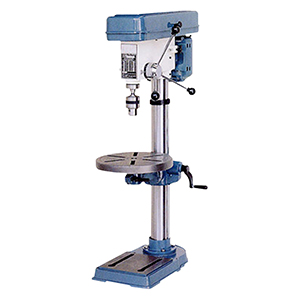

| DRILL PRESS |
|
SPECS:
|
Item No. |
LS00061 |
|
Max. drilling capacity |
5/8" (16 mm) |
|
Spindle taper |
MT2/JT3 / MT2/B18 |
|
Chuck |
5/8" (16 mm) |
|
Max. spindle stroke |
3-1/16" (78 mm) |
|
Swing |
13-3/4" (350 mm) |
|
Number of speed |
12.16 |
|
Spindle speed |
50Hz (R.P.M.) |
230 - 2730 (12S) |
|
60Hz (R.P.M.) |
280 - 3280 (12S) |
|
Max. distance from spindle to table |
17-1/2" (443 mm) |
|
Max. distance from spindle to base |
24" (610 mm) |
|
Diameter of column |
2-7/8" (73 mm) |
|
Size of table |
11-7/15" (290mm)-0
9" x 9" (230 x 230 mm)-S
|
|
Size of base |
17-5/16" x 9-7/8"
(440 x 250 mm)
|
|
Overall height |
39-3/8" (1000 mm) |
|
Motor |
3/4 HP |
|
Weight (net) / (gross) |
45 kgs / 48 kgs |
|
CUFT |
3.45' |
PACKING:
► Carton box
|
|
|
