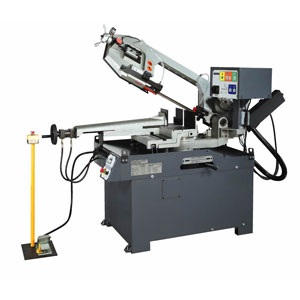

SPECS:

► Motor: AC-motor

► Blade speed: 35 + 75 MPM

► Blade size: 2085 x 20 x 0.9mm

► Cooling: Yes

► Capacity:

     90 Degree: ● 185mm ■ 180mm ▅ 200 x 150mm

     45 Degree: ● 110mm ■ 110mm ▅ 110 x 110mm

     60 Degree: ●   70mm ■   70mm  ▅   70 x 70mm

► Dimension: 1280 x 550 x 1370mm

► N.W./G.W.: 190 / 215 kgs

► Packing: 1155 x 680 x 920mm

► 20' Load: 32 sets

Manual pull down saw-frame for cutting miter

cutting from 0 - 60 degree left

FEATURES:

► Quick clamping vice, equipped with quick short

     range sliding device. max open 260mm

►  Adjustment of the blade tension from the front

      side of the saw-frame, checked by an tension

      gauge at blade tension 1500 kg/cm2, blade

      guides with hard metal pads.

►  Start-button inside the operation handle.

►  3-Way selector: A. Manual cut B. Fast drop of the

      saw-frame toward the material C. Automatic cut

      with adjustable down-feed rate

►  Motor available in single phase dc-motor with

      variable speed or three phase ac-motor with

      2 speed

►  Cutting with cooling system

PACKING:

► Wooden case
