SPECS:

► Motor: 2 HP / 220V / 60 HZ

► Air capacity : 1200 CFM

► Static pressure: 8 INH2O

► Noise: 76 DB at 3 meter position

► Inlet size: 7" x 4" x 2"

► Bag capacity: 30 micron

► Overall size(L x W x H): 1045 x 550 x 555mm

► N.W. / G.W. / CUFT.: 84kgs / 89kgs / 11.2'

FEATURES:

► The UB-502 is used for source extraction from metal

     or aluminum working chip and for cleaning.

► Cyclone separation and collecting in a still container

     make this machine ideal for use with sharp items

     such as metal chips.

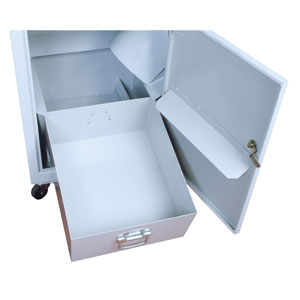

► It collects extracted material in a 28 liter. the container

     can be removed with a simple hand grip.

► The collected material is easily handled in this way

     for disposal or recycling.

► The machine is equipped with a 30 micron filter bag

     as standard.

PACKING:

► Pallet
