Item No. |
LS00030 |

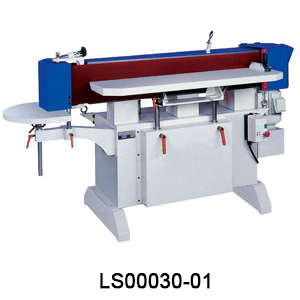

LS00030-01 |
|
Motor |
3HP / 220V / 3HP / 60 HZ |
5HP / 220V / 60 HZ |
Front table size
(L x W) |
1210 x 300mm |
1212 x 300mm |
|
Belt size |
230 x 3520 mm |
|
Table tilt |
45° |
|
Table height |
830 mm |
|
Dust port |
4" (100MM) x 2 |
Overall size
(L x W x H) |
2100 x 620 x 1020mm |
2150 x 850 x 1020mm |
Packing size
(L x W x H) |
1980 x 605 x 1100mm |
1975 x 950 x 1170mm |
|
N.W./ G.W./ CUFT |
295kgs / 330kgs / 47.5' |
380kgs / 450kgs / 78' |
FEATURES:
► With its powerful 3HP motor can delivers the performance
professional demand.
► Coupled with an industrial quality eccentric oscillation
mechanism that delivers more efficient sanding,
less tendency to burn and less belt loading.
► Heavy duty spring system allows easy adjustment
for the front aluminum table for full use of the abrasive
surface.
► Aluminum auxiliary contour table allow use of 4" idler
roller as a drum sander.
► 9" Dia. drive drum, 4" dia. idler drum.
► 9"-1/2" x 48" cast iron platen with graphite pad.
► Rugged bearing -assisted belt tension devise.
► Aluminum table travels 8" and tilts -5 to 45 degree.
► Dual 4" dust ports. belt speed : 4200 fpm.
► Sanding belt oscillate distance : 1/4"(6 mm)
PACKING:
► Pallet
