SPECS:

► Motor: 167WATT/230V/50HZ/1P,

                 225WATT(Non loading)

► Impeller: DIA. 5"

► Filter box size: 305 x 305 x 220mm

► Outer filter net: 315 x 315mm

► Overall size(L x W x L): 440 x 310 x 350mm

► Packing size(L x W x L): 455 x 390 x 360mm

► N.W. / G.W. / CUFT.: 23kgs / 24.5kgs / 2.3'

► Outlet size: DIA. 5"

► Air capacity: max. 272 CFM

► Amperage: 0.72 AMP

► Noise: max. 60 at 3 meter

► Filter cycle (20' x 20' x 8' room): 5 time / hour

► Switch: Anti dust switch

FEATURES:

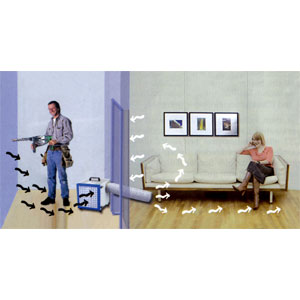

► Designed for the reduction of airborne dust by using

     highly efficient ashrae 95% filtration under the 38%

     dop penetration.

► Developing air capacity at least 450 meter 3/hour at

     open inlet machine has power too, with advantage of

     being able to add 5 meter of outlet hose without

     significant loss of airflow.

► Special hanger for easily adjusting the distance

     between the cover.

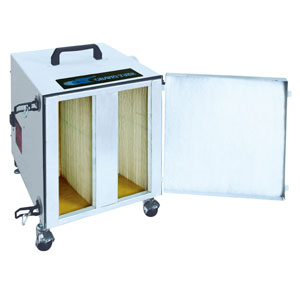

► 95% efficiency with the ashrae class 1000 single

     layer for the inner filter box.

► The fan unit is a radial blower with highly efficient

     design that maintains a high pressure across its

     whole flow range.

► It is built from 18 gauge sheet metal to be extra

     damage resistance and attached four wheels for

     easy movement.

PACKING:

► Carton box
