Item No. |
LS00026 |
LS00026-01 |
|
Motor |
1/2 HP |
1/2 HP x 2 |
|
Table surface area |
950 x 500mm |
1500 x 550mm |
|
Filter micron |
5 micron |
|
Air suction capacity |
1790 CFM |
1790 CFM x 2 |
Overall size
(L x W x H) |
1050 x 600 x 850mm |
1650 x 650 x 850mm |
Packing size
(L x W x H) |
1050 x 690 x 850mm |
1650 x 700 x 920mm |
|
N.W./ G.W./ CUFT |
70kgs/ 81kgs/ 21.7' |
198kgs/ 220kgs/ 37.8' |

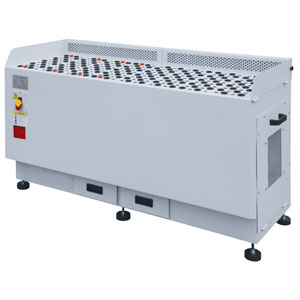

FEATURES:
► The downdraft table provides a higher level of safety and
convenience by collecting dust at the source.
► Special design for heavy and finish sanding, routing and
chop saw applications.
► Industrial strength steel cabinet with three foldable dust
curtains help to preventing the tiny dust from the
operating polishing.
► Steel top with rubber grommets to hold and protect
working piece.
► Low noise.
► Table panels can be moved up 5~20 mm for better
collection system.
► These units are with double sides dust collecting
function for better collection efficiency.
► FT-1000 is with 2 inlets and 2 filters,
FT-1600 is with 2 inlets and 4 filters
PACKING:
► LS00026: carton box
► LS00026-01: pallet
