Item No. |

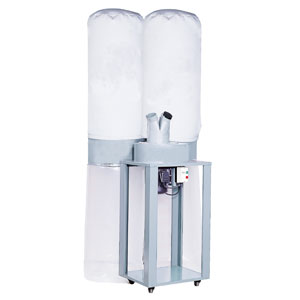

LS00013 |

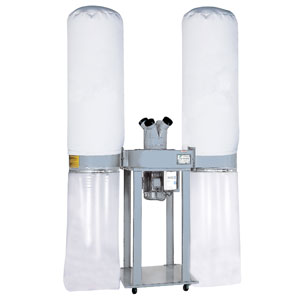

LS00013-01 |
|
Motor |
5HP/60HZ, 3.75KW/50HZ |
|
Impeller size |
15", 381 mm |
|
Air suction w/o bag |
3800 CFM, 5050 M3/H |
|
Max. static pressure |
15 INH20, 380 MM/AQ |
|
Inlet diameter |
9" x 4" x 4, 229 x 102 mm x 4 |
|
Bag capacity |
83 gallon, 330 liter |
|
Bag diameter |
23.5/8", 600mm
|
|
Bag height |
70.3/4", 1800mm |
|
Noise rate (@3M) |
95 dB |
Overall size
(L x W x H) |
1250 x 1400 x 2670mm |
2200 x 660 x 3200 mm |
Packing size
(L x W x H) |
1405 x 770 x 800mm |
1280 x 700 x 810mm |
|
N.W. / G.S. / CUFT |
134 kgs/ 191 kgs/ 30.6' |
122 kgs/ 172 kgs/ 25' |
FEATURES:
► Industrial quality motor and specially designed blower impeller
for maximum performance.
► Each caster allows for total mobility.
► Dust collector bags always come with an elastic band for 30
micron filter bag for easy installation.
► Metal strap bag clamp will tie up the collection bag completely.
► Extensive line of accessories to control the toughest dust
collecting jobs.
► Solid and rigid housing design for the blower system.
PACKING:
