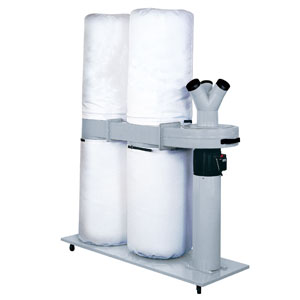

3HP DUST COLLECTOR
SPECS:
Item No. LS00009 LS00009-01
Air suction
w/o bag		 2100 CFM ,
2793 M3/H		 2300 CFM ,
3060 M3/H
Inlet diameter
8" x 4" x 3 ,
200 x 102 mm x 3
 7" x 4" x 3 ,
178 x 102 mm x 3
Motor 3HP/60HZ , 2.25KW/50HZ
Impeller size 13.3" , 337mm
Max. static pressure 14 INH20 , 355mm/AQ
Bag capacity 83 gallon, 330 liter
Bag diameter 19.5/8", 500mm
Noise rate (@3M) 88 dB
Overall size
(L x W x H)		 1450 x 490 x 1900mm 1550 x 550 x 1900mm
Packing size
(L x W x H)		 1550 x 550 x 570mm
Stand: 645 x 235 x 210mm
Body: 860 x 600 x 595mm
N.W./ G.W./ CUFT 86kgs / 90kgs / 17.2'
Stand: 7kgs / 8kgs / 1.1'
Body: 66 kgs / 72kgs/ 10.80'
20FT container 58 sets 96 sets

FEATURES:
► Industrial quality motor and specially designed
     blower impeller for maximum performance.
► Each caster allows for total mobility.
► Dust collector bags always come with and elastic
     band for 30 micron filter bag for easy installation.
► Metal strap bag clamp will tie up the collection bag
     completely.
► Extensive line of accessories to control the toughest
     dust collecting jobs.
► Solid and rigid housing design for the blower system

PACKING:
► Carton box

ITEM NO QUOTATION
LS00009
LS00009-01
