New products

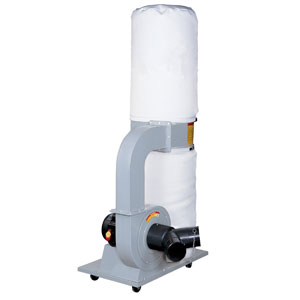

DUST COLLECTOR
SPECS:
Item No. LS00006 LS00006-01
Motor
1.1/2HP/60HZ ,
1.13KW/50HZ
2HP/60HZ ,
1.5KW/50HZ
Impeller size 11.1/2" , 292mm 12.1/2", 317mm
Air suction
w/o bag
1300 CFM ,
1730 M3/H
1650 CFM ,
2200 M3/H
Max. static
pressure
9 INH20 ,
229 MM/AQ
11 INH20 ,
279 MM/AQ
Noise rate (@3M) 80 dB 85 dB
Inlet diameter 6" x 4" x 2, 152 x 102mm x 2
Bag capacity 42 gallon, 168 liter
Bag diameter 19.5/8", 500mm
Overall size
(L x W x H)
1000 x 800 x 1900mm
Packing size
(L x W x H)
920 x 580 x 580mm
N.W. / G.W. / CUFT 45kgs / 48kgs / 10' 55kgs / 58kgs / 10'
20FT container 96 sets

FEATURES:
► Industrial quality motor and specially designed
     blower impeller for maximum performance.
► Each caster allows for total mobility.
► Dust collector bags always come with an elastic
     band for 30 micron filter bag for easy installation.
► Metal strap bag clamp will tie up the collection bag
     completely.
► Extensive line of accessories to control the toughest
     dust collecting jobs.
► Solid and rigid housing design for the blower system.
► 1-Micron filter bag and aluminum impeller optional
     accessory.
► The plastic bag can use for bottom collecting bag in
     order to replacing clothes bag.

PACKING:
► Carton box

ITEM NO QUOTATION
LS00006
LS00006-01
