SPECS:
|
Item No. |

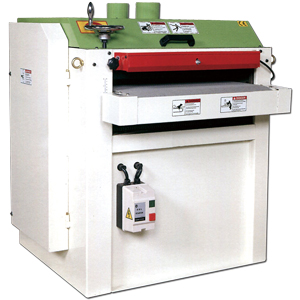

LS00274 |

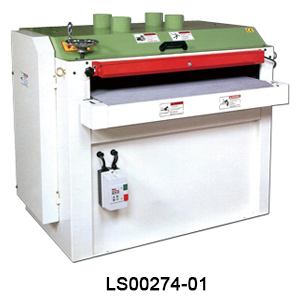

LS00274-01 |

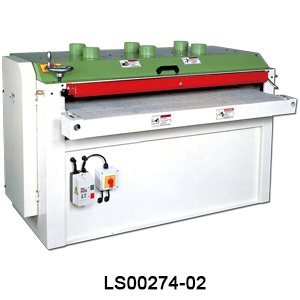

LS00274-02 |
|
Max. sanding width |
635 mm (25") |
940 mm (37") |
1370 mm (54") |
|
Table dimension |
635 x 870 mm
(25" x 34-1/4") |
940 x 870 mm
(37" x 34-1/4") |
1370 x 970 mm
(54" x 38") |
|
Max. sanding thickness |
100 mm (4") |
|
Sanding wheel diameter |
150 mm (6") |
|
Speed of sanding wheel |
1720 rpm |
|
Feeding speed |
3.7 m/min (12 FPM) |
|
Sanding motor |
5 HP |
10 HP 3 phase |
|
Feeding motor |
1/4 HP |
1/2 HP 3 phase |
Overall dimensionm
(D x W x H) |
37" x 41" x 43" |
49" x 41" x 43" |
66" x 46-1/2" x 43" |
|
Net/Gross weight |
838 lbs(380 kgs)
948 lbs(430 kgs) |
1014 lbs(460 kgs)
1146 lbs(520 kgs) |
1213 lbs(550 kgs)
1345 lbs(610 kgs) |
FEATURES:
► Ruggedly constructed throughout assures maximum stability
and minimum noise.
► Heavy gauge steel frame and conveyor table for maximum
durability without deformation.
► Conformity to CE standards certified by Nemko.
► Equipped with high efficiency dust system.
► Thickness limit control switch ensure operation safety.
► Industrial grade conveyor belt provides smooth running and
slipping-free performance.
► Sanding belt is specially wound for maximum security.
► Guarantees no folding or breaking during sanding operations.
► Two sanding drums position may be micrometrically adjusted.
► 4 heavy duty jack screws provide solid support for conveyor
table.
► Minium sanding length 8" (203mm)
► Thickness capacity on each sanding is 0.1-0.4 mm.
► Single or three phase motor for choice.
► Various sanding belts for choice.#60, #80, #100, #150, #180,
#240.
► Variable feeding speed(optional).
|
