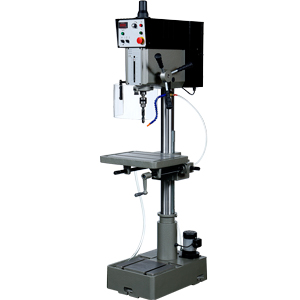

INVERTER VARIABLE SPEEDS DRILLING MACHINE - ELECTRIC CONTROL
SPECS:
Item No.
LS00279
LS00279-01
Drilling capacity
Steel - 1" (25 mm)
Cast iron - 1-1/4" (32 mm)
Steel - MT3 1-1/4" (32 mm)
MT4 1-1/2" (40 mm)
Tapping capacity
Steel - 5/8" (16 mm)
Cast iron - 3/4" (19 mm)
3/4" (19 mm)
Swing
16" (408 mm)
20.8" (530 mm)
Spindle taper
MT3#
MT3#, MT4#
Spindle travel
5.3" (135 mm)
6" (150 mm)
Quill diameter
2-7/16" (62 mm)
3" (75 mm)
Column diameter
3.6" (92 mm)
4-1/2" (115 mm)
Spindle nose to table
23.8" (605 mm)
36.4" (925 mm)
Spindle nose to base
45.3" (1150 mm)
48" (1225 mm)
Table size (L x W)
18.1" x 14.2"
(460 x 360 mm)
22" x 18.5"
(560 x 470 mm)
Spindle speed
185~2500 rpm
High - 245~2000 rpm
Low - 65~540 rpm
Table slot
5/8" (16 mm)
Base size (L x W)
27" x 19" (685 x 485 mm)
Motor
2 HP / 3 HP
Coolant motor
1/8 HP / 3 PH
Machine size
(L x W x H)
26" x 18" x 69.5"
(660 x 460 x 1765 mm)
42.7" x 22.7" x 80"
(1085 x 578 x 2035 mm)
Net weight
220 kgs
340 kgs
Measurement
34.3 CU.FT
42 CU.FT.
FEATURES:
► Forward and reverse tapping system.
► Digital tachometer display.
ITEM NO
QUOTATION
LS00279
LS00279-01
