Item NO. |

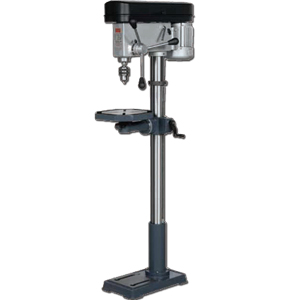

LS00278 |
LS00278-01 |
|
Max. drilling capacity |
16 mm(5/8") |
20 mm(3/4") |
|
Spindle taper |
MT2/JT3, MT2/B18 |
MT2/JT33, MT2/B18, MT3/ JT3 |
|
Chuck |
16 mm(5/8") |
16 mm(5/8") |
|
Max. spindle stroke |
85 mm
(3-5/16")
|
85 mm
(3-5/16")
|
|
Swing |
365 mm
(14-3/8")
|
430 mm
(17")
|
|
Number of speed |
12, 16 |
12, 16 |
|
Speed of spindle
50 Hz
60 Hz
|
290~2330(12s)
350~2800(12s)
|
290~2330(12s)
350~2800(12s)
|
|
Diameter of column |
80 mm(3-1/8") |
80 mm(3-1/8") |
|
Max. distance from
spindle to table
|
700 mm
(27-1/2")
|
775 mm
(30-1/2")
|
|
Max. distance from
spindle to base
|
1220 mm
(48-1/8")
|
1270 mm
(50")
|
|
Overall heigth |
1600 mm
(63")
|
1625 mm
(64")
|
|
Size of table round
With T-slot
|
Ø 320 mm
(12-5/16")
Ø 350 mm
(13-3/4")
290 x 290 mm
|
Ø 350 mm
(13-3/4")
290 x 290 mm
|
|
Size of base |
458 x 265 mm
(18" x 10-1/2")
|
495 x 280 mm
(19-1/2" x 11")
|
|
Motors |
1/3 HP, 1/2 HP |
1/3 HP, 1/2 HP, 3/4 HP |
|
Net / Gross weight / Cuft |
70 kgs / 74 kgs / 7' |
74.2 kgs / 78 kgs / 7' |
|
20' Fcl |
140 sets |
140 sets
|
