Item NO. |

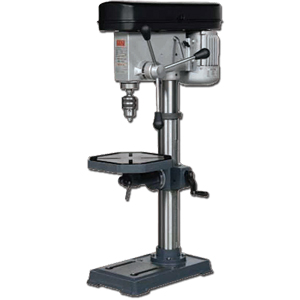

LS00277 |
LS00277-01 |
|
Max. drilling capacity |
16 mm(5/8") |
20 mm(3/4") |
|
Spindle taper |
MT2/JT3, MT2/B18 |
MT2/JT33, MT2/B18, MT3/ JT3 |
|
Chuck |
16 mm(5/8") |
16 mm(5/8") |
|
Max. spindle stroke |
85 mm
(3-5/16")
|
85 mm
(3-5/16")
|
|
Swing |
365 mm
(14-3/8")
|
430 mm
(17")
|
|
Number of speed |
12, 16 |
12, 16 |
|
Speed of spindle
50 Hz
60 Hz
|
290~2330(12s)
350~2800(12s)
|
290~2330(12s)
350~2800(12s)
|
|
Diameter of column |
80 mm(3-1/8") |
80 mm(3-1/8") |
|
Max. distance from
spindle to table
|
470 mm
(18-1/2")
|
460 mm
(18-1/8")
|
|
Max. distance from
spindle to base
|
650 mm
(25-1/2")
|
638 mm
(25-1/8")
|
|
Overall heigth |
1010 mm
(39-3/4")
|
1085 mm
(42-3/4")
|
|
Size of table round
With T-slot
|
Ø 320 mm
(12-5/16")
Ø 350 mm
(13-3/4")
290 x 290 mm
|
Ø 350 mm
(13-3/4")
290 x 290 mm
|
|
Size of base |
458 x 265 mm
(18" x 10-1/2")
|
505 x 278 mm
(19-7/8" x 10-7/8")
|
|
Motors |
1/3 HP, 1/2 HP |
1/3 HP, 1/2 HP, 3/4 HP |
|
Net / Gross weight / Cuft |
60 kgs / 63 kgs / 4.44' |
69 kgs / 72 kgs / 6.7' |
|
20' Fcl |
225 sets |
150 sets |
